Marathon Fans
Harmonization Schedule (HS) and Schedule B Number: 85030090

Plastic Fans    Aluminum Fans    All fans by Size    Allis-Chalmers    Baldor    Century    Doerr
   Fincor   Franklin    General Electric    Leeson    Leroy-Somers    Lincoln    Louis-Allis    Magnetek   Marathon
Reliance    Siemens    Siemens-Allis   AO Smith    Toshiba    US Motors    Westinghouse     Weg



Part Price
Bore (ID) OuterDiameter Blades-Material 1200rpm frame 1800rpm frame 3600rpm frame
MR145TC
Obsolete.
Use MR4541D below.
0.625" 5.875" 12-Plastic 145 145 145
Part Price
Bore (ID) OuterDiameter Blades-Material 1200rpm frame 1800rpm frame 3600rpm frame
MR156F
Obsolete
0.625" 6.250" 10-Metal 56, 140T 56, 140T 56,140T
Part Price
Bore (ID) OuterDiameter Blades-Material 1200rpm frame 1800rpm frame 3600rpm frame
MR156-8 $25.00
0.750" 4.875" 10-Metal 56-8 56-8 56-8

Part Price
Bore (ID) OuterDiameter Blades-Material 1200rpm frame 1800rpm frame 3600rpm frame
MR182FS $153.50
0.625" 8.250" 14-Metal 182 182 182
MR213F $212.50
0.937" 8.375" 14-Metal 213 213 213
MR213AT $212.50
0.937" 9.000" 14-Metal 213 213 213
Part Price
Bore (ID) OuterDiameter Blades-Material 1200rpm frame 1800rpm frame 3600rpm frame
MR156-2
Obsolete
1.000" 4.875" 10-Metal 56-2 56-2 56-2
MR167F
Obsolete
1.000" 4.875" 10-Metal 67 67 67
MR166F $37.50
1.000" 5.812" 10-Metal 66 66 66
Part Price
Bore (ID) OuterDiameter Blades-Material 1200rpm frame 1800rpm frame 3600rpm frame
MR145FS
Obsolete
1.187" 5.250" 11-Aluminum 145 145 145
MR215FA $18.00
1.343" 6.125" 11-Plastic 215 215 215
MR180F $30.00
1.592" 6.09" 11-Plastic 180 180 180
MR181F $20.00
1.719" 6.09" 11-Plastic 180 180 180
MR182F
Obsolete
1.875" 8.000" 22-Aluminum 182 182 182
MR215F
Obsolete
2.062" 8.000" 22-Aluminum 213 213 213
MR284F $27.50
2.375" 8.000" 22-Aluminum 284 284 284

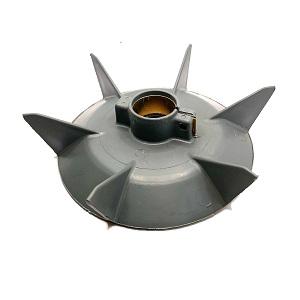

Fan MR9136003 Drawing

Part Price
Bore (ID) OuterDiameter Blades-Material Notes
MR9136003
   3D219-14
$94.50
1.187" 7.000" 6-Plastic Blade height: 1.625", Hub height: 1.500"

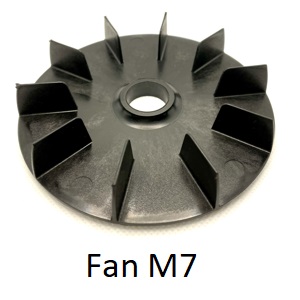

Fan M7 Drawing

Part Price
Bore (ID) OuterDiameter Blades-Material Notes
MR9136605 $12.50
0.750" 4.500" 10-Black Plastic Blade height: 0.750", Total height: 0.875"


Fan LN3 Drawing

Part Price
Bore (ID) OuterDiameter Blades-Material Notes
LN3569.01
MR6255D
Black plastic
$15.00
0.625" 5.000" 11-Black Plastic has flat spot on bore
MR4541D
White plastic
$23.50
0.625" 6.000" 11-White Plastic has flat spot on bore

Part Price
Bore (ID) OuterDiameter Blades-Material Notes
MR4537K
   C-67991
$23.50
0.937" 6.000" 11-White Plastic 0.187" x 0.093" key
MR9136584
   C-67991
$23.50
11-Black Plastic 0.187" x 0.093" key
MR1822FP
   D-67155
$137.50
7.000" 11-Aluminum
Formerly plastic
0.250" x 0.125" keyway
MR-D-67992-1
   D-67992-1
$32.50
8.250" 11-Plastic 0.187" x 0.093" key
MR4544K
   D-86054-1
$49.50
9.000" 11-Plastic 0.187" x 0.093" key
MR-C-41986
   C-41986
   C-90373
$37.50
1.125" 6.000" 11-Plastic 0.250" x 0.093" key
MR2542
   D-67154
$87.50
1.375" 7.000" 11-Plastic 0.250" x 0.125" key
MR1824K
   D-67992-2
$42.50
8.250" 11-Plastic 0.250" x 0.125" key
MR1824FP
   D-26773
$87.50
8.375" 11-Plastic 0.250" x 0.125" keyway
MR1826FP
   D-86054-2
$49.50
9.000" 11-Plastic 0.250" x0.125" key
MR2134FP
   D-511521
$112.50
11.000" 11-Plastic 0.250" x 0.125" keyway
MR2134K
   D-90975
$115.50
11-Plastic 0.250" x 0.125" key

Part Price
Bore (ID) OuterDiameter Blades-Material Notes
MR3204FP
   D-511708
$275.00
2.250" 14.625" 13-Plastic 0.500" x 0.500" keyway, 4 bolt ring clamp
MR9136979
   D-511678
$295.00
17.000" 13-Plastic 0.500" x 0.500" keyway, 4 bolt ring clamp
