Leeson Fans
Harmonization Schedule (HS) and Schedule B Number: 85030090

Typically Leeson black plastic fans are for severe duty/hazardous location.

Plastic Fans    Aluminum Fans    All fans by Size    Allis-Chalmers    Baldor    Century    Doerr
   Fincor   Franklin    General Electric    Leeson    Leroy-Somers    Lincoln    Louis-Allis    Magnetek   Marathon
Reliance    Siemens    Siemens-Allis   AO Smith    Toshiba    US Motors    Westinghouse     Weg


Part Price
Bore (ID) OuterDiameter Blades-Material

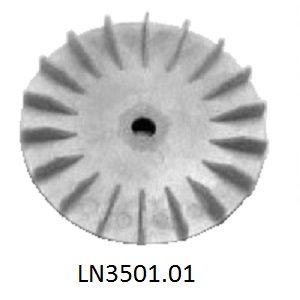

LN3501.01 $19.00
0.360" 3.500" 18-Plastic
Part Price
Bore (ID) OuterDiameter Blades-Material

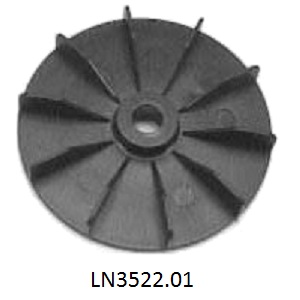

LN3522.01 $15.00
0.360" 3.125" 10-Plastic
Part Price
Bore (ID) OuterDiameter Blades-Material
LN3535.01
Black plastic
$14.50
0.625"/0.437" 4.750" 12-Black Plastic
Round hub perimeter
LN3569.02
White plastic
$15.00
5.000" 11-White Plastic
LN3569.03
Black plastic
$15.00
11-Black Plastic
LN156 $15.00
5.500" 12-Plastic
LN156A
White plastic
$19.00
6.000" 11-White Plastic
LN3565.04
Black plastic
$19.00
11-Black Plastic
LN182F
003509.01
$182.50
8.375" 12-Almuninum
was plastic

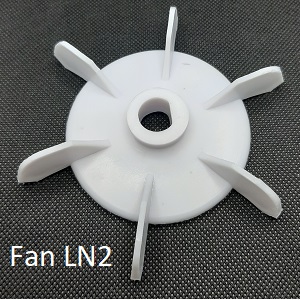

Fan LN2 Drawing

Part Price
Bore (ID) OuterDiameter Blades-Material
LN169022 $12.50
0.463"
w/flat spot
4.187" 6-Plastic, for 63 frame
LN169023 $12.50
0.575"
w/flat spot
4.575" 6-Plastic, for 71 frame
LN169024 $12.50
0.775"
w/flat spot
4.750" 6-Plastic, for 80 frame
LN169025 $12.50
5.250" 6-Plastic, for 90 frame


Fan LN3 Drawing

Part Price
Bore (ID) OuterDiameter Blades-Material
LN3569.01
Black plastic
$15.00
0.625"
w/flat spot
5.000" 11-Black Plastic
MR4541D
009136.16
White plastic
$23.50
0.625"
w/flat spot
6.000" 11-White Plastic

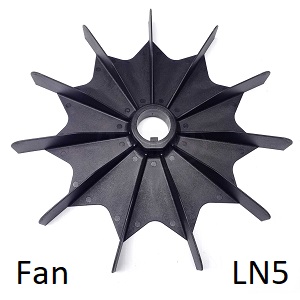

Fan LN5 Drawing
Part Price
Bore (ID) OuterDiameter Blades-Material
LN3565.03
White plastic
$15.00
0.880" with
3/16" key
6.000" 11-White Plastic
LN3563.01
Black plastic
$39.50
8.500" 11-Black Plastic
LN3562.01
Black plastic
$32.00
1.125" with
1/4" key
9.375" 11-Black Plastic

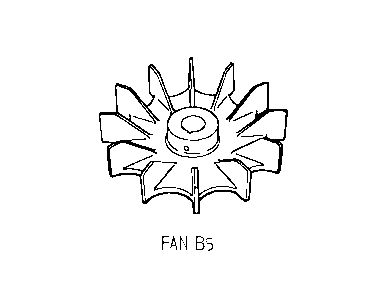

Fan B5 Drawing
Part Price
Bore (ID) OuterDiameter Blades-Material
LN22104.01 $90.00
0.875" w/keyway 9.750" 12-Aluminum
Fan M6 Drawing
Part Price
Bore (ID) OuterDiameter Blades-Material
LN180F $17.50
1.592" 6.500" 11-Plastic

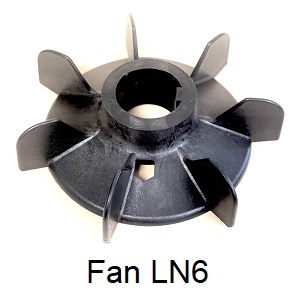

Fan LN6 Drawing
Part Price
Bore (ID) OuterDiameter Blades-Material
INF1.125x6.125 $58.50
1.125" w/0.320" key 6.125" 6-Plastic, 1.400" tall, Y112-2
INF1.500x7.312 $113.50
1.500" w/0.390" key 7.312" 6-Plastic, 1.715" tall, Y132-2
INF1.500x8.625 $113.50
1.500" w/0.406" key 8.625" 6-Plastic, 1.750" tall, Y132-4
INF1.688x9.750 $162.50
1.688" w/0.475" key 9.750" 6-Plastic, 2.312" tall, Y160-46
INF1.695x8.562 $149.50
1.695" w/0.475" key 8.562" 6-Plastic, 2.000" tall, Y160-2
INF1.695x9.730 $237.50
1.695" w/0.475" key 9.730" 6-Plastic, 2.437" tall, 180-2∙4
INF2.038x7.250 $192.50
2.038" w/0.541" key 7.250" 6-Plastic, 2.11" tall, N320
INF2.046x10.875 $237.50
2.046" w/0.55" key 10.875" 6-Plastic, 2.47" tall
INF2.297x10.000 $280.50
2.297" w/0.625" key 10.000" 6-Plastic, 2.81" tall, Y200-2,
1800rpm, 3600rpm
LN445T $74.50
2.687" w/0.708" key 11.250" 7-Plastic, 2.75" tall, 1800rpm
