Macrostart Switches

Macrostart Drawing

Dimensions: 1.53" x 1.53" x 0.56"

   Macrostart switches replace voltage or current relays and centrifugal switches for most motors. Patent Numbers: 4761601, 4468604 and 4,468,604
   Product selection: Find voltage and amperage (or horsepower) and pick desired time for switch to energize the start windings. 1/3 second is usually for pumps, compressors, etc. 1/2 second is usually for fans, disposals, etc. 1 second is usually for capacitor and split-phase motors.
115VAC
20A, 2hp
$35.00		 {
20-0.33-115V
1/3 second
OBSOLETE
20-0.50-115V
1/2 second
OBSOLETE

20-1.00-115V
1 second
OBSOLETE

115VAC
30A, 5hp
$60.00		 {

30-0.33-115V
1/3 second
OBSOLETE


30-0.50-115V
1/2 second
OBSOLETE

30-1.00-115V
1 second
OBSOLETE

115VAC
60A, 5hp+
$82.50		 {

60-0.50-115R
1/2 second
OBSOLETE

60-1.00-115R
1 second
OBSOLETE
230VAC
20A, 2hp
$46.00		 {

20-0.33-230V
1/3 second
OBSOLETE

20-0.50-230V
1/2 second
OBSOLETE

20-1.00-230V
1 second
OBSOLETE

230VAC
30A, 5hp
$63.00		 {


30-0.50-230V
1/2 second
OBSOLETE

30-1.00-230V
1 second
OBSOLETE

230VAC
60A, 5hp+
$92.50		 {


60-0.50-230R
1/2 second
OBSOLETE

60-1.00-230R
1 second
OBSOLETE

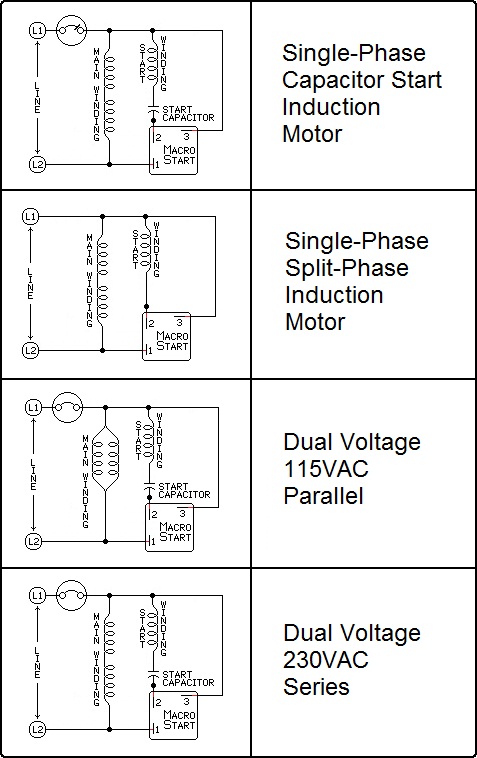

Macro Start Wiring Diagrams

MacroStart Wiring Diagrams
