Brush Seaters here
Commutator Stones - Selection guide at the bottom of this page.
Harmonization Schedule (HS) and Schedule B Number:  6804220000
Contact Cleaners here


Smoothie Drawing
2001 Holder Classic Smoothie
Part Price
Specifications
2000 kit $73.50 Assortment of 12 grades
1.000" x 0.750" x 0.250", Holder & 12 stones
2001 $36.98
Choose Grades
1.000" x 0.750" x 0.250", Holder & 2 stones
200* $29.95
Choose Grade
1.000" x 0.750" x 0.250", Box of 6 stones
Smoothie $42.25
Classic commutator smoothie: Fine and Polish
Part Price
Specifications
801 $24.00
Choose Grade

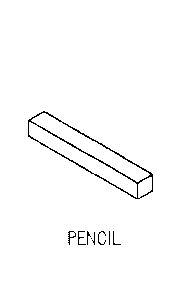

0.125" x 0.375" x 6.000", Pencil
6271R $19.00 Grade: Rubrite
0.125" x 1.000" x 5.000", Pencil
803 $32.00
Choose Grade
0.250" x 0.312" x 8.000", Pencil
800 $32.00
Choose Grade
0.250" x 0.375" x 6.000", Pencil
802 $20.00
Choose Grade
0.250" x 0.500" x 3.000", Pencil
805 $34.00
Choose Grade
0.250" x 0.500" x 6.000", Pencil
809 $36.00
Choose Grade
0.312" x 0.750" x 8.000", Pencil
Part Price
Specifications
810 $32.00
Choose Grade
0.375" x 0.375" x 6.000", Pencil
6250R $22.00 Grade: Rubrite
0.375" x 0.375" x 6.000", Pencil
815 $36.00
Choose Grade
0.375" x 0.500" x 6.000", Pencil
6251R $24.00 Grade: Rubrite
0.375" x 0.500" x 6.000", Pencil
825 $40.00
Choose Grade
0.375" x 0.625" x 6.000", Pencil
6252R $26.00 Grade: Rubrite
0.375" x 0.625" x 6.000", Pencil
820 $40.00
Choose Grade
0.500" x 0.500" x 6.000", Pencil
6254R $26.00 Grade: Rubrite
0.500" x 0.500" x 6.000", Pencil
830 $42.00
Choose Grade
0.500" x 0.625" x 6.000", Pencil
6255R $36.00 Grade: Rubrite
0.500" x 0.750" x 5.000", Pencil
Part Price
Specifications
6256R $44.00 Grade: Rubrite
0.500" x 1.000" x 5.000", Pencil
6259R $46.00 Grade: Rubrite
0.625" x 1.000" x 5.000", Pencil
835 $44.00
Choose Grade
0.625" x 0.625" x 6.000", Pencil
804 $36.00
Choose Grade
0.750" x 0.750" x 3.000", Pencil
840 $48.00
Choose Grade
0.750" x 0.750" x 6.000", Pencil
6260R $46.00 Grade: Rubrite
0.750" x 0.750" x 5.000", Pencil
6261R $56.00 Grade: Rubrite
0.750" x 1.000" x 5.000", Pencil
Part Price
Specifications
700S $70.00
Choose Grade

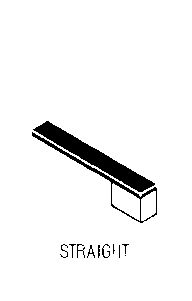

1.000" x 1.000" x 1.000", Straight
710S $80.00
Choose Grade
1.000" x 1.000" x 2.000", Straight
905 $94.00
Choose Grade One
Choose Grade Two

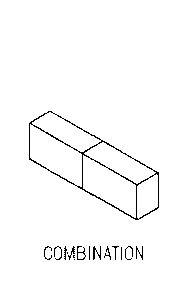

1.000" x 1.000" x 4.000", Combination
6262R $70.00 Grade: Rubrite
1.000" x 1.000" x 5.000", Pencil
845 $84.00
Choose Grade
1.000" x 1.000" x 6.000", Pencil
846 $90.00
Choose Grade
1.000" x 1.000" x 6.500", Pencil
Part Price
Specifications
716S $96.00
Choose Grade
1.000" x 1.500" x 2.000", Straight
6263R $80.00 Grade: Rubrite
1.000" x 1.500" x 5.000", Pencil
847 $136.00
Choose Grade
1.000" x 1.000" x 6.500", Pencil
860 $230.00
Choose Grade
1.000" x 1.000" x 6.500", Pencil
710R $80.00
Choose Grade
1.000" x 2.000" x 1.000", Straight
716R $96.00
Choose Grade
1.000" x 2.000" x 1.500", Straight
6264R $90.00 Grade: Rubrite
1.000" x 2.000" x 5.000", Pencil
Part Price
Specifications
910 $200.00
Choose Grade One
Choose Grade Two
1.000" x 2.000" x 6.000", Combination
850 $224.00
Choose Grade
1.000" x 2.000" x 8.000", Pencil
940 $250.00
Choose Grade One
Choose Grade Two
1.000" x 2.000" x 8.000", Combination
6266R $140.00 Grade: Rubrite
1.000" x 3.000" x 5.000", Pencil
6268R $170.00 Grade: Rubrite
1.000" x 4.000" x 5.000", Pencil
6269R $270.00 Grade: Rubrite
1.000" x 5.000" x 5.000", Pencil
Part Price
Specifications
712S $90.00
Choose Grade
1.500" x 1.000" x 2.000", Straight
725S $104.00
Choose Grade
1.500" x 1.500" x 1.500", Straight
712R $95.00
Choose Grade
1.500" x 2.000" x 1.000", Straight
6235R $150.00 Grade: Rubrite
1.500" x 2.000" x 2.000", Tramway
407 $158.00
Choose Grade

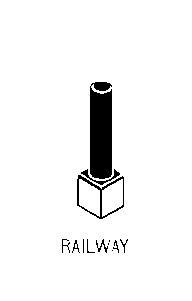

1.500" x 2.000" x 3.000", Railway
707S $158.00
Choose Grade
1.500" x 2.000" x 3.000", Straight
307S $158.00
Choose Grade
1.500" x 2.000" x 3.000", Tramway
707R $158.00
Choose Grade
1.500" x 3.000" x 2.000", Straight
307R $158.00
Choose Grade
1.500" x 3.000" x 2.000", Tramway
Part Price
Specifications
705S $85.00
Choose Grade
2.000" x 1.000" x 1.000", Straight
706R $90.00
Choose Grade
2.000" x 1.000" x 1.500", Straight
715S $95.00
Choose Grade
2.000" x 1.000" x 2.000", Straight
706S $90.00
Choose Grade
2.000" x 1.500" x 1.000", Straight
400 $100.00
Choose Grade
2.000" x 1.500" x 2.000", Railway
300S $100.00
Choose Grade
2.000" x 1.500" x 2.000", Tramway
306S $150.00
Choose Grade
2.000" x 1.500" x 3.000", Tramway
715R $95.00
Choose Grade
2.000" x 2.000" x 1.000", Straight
Part Price
Specifications
300R $100.00
Choose Grade
2.000" x 2.000" x 1.500", Tramway
405 $135.00
Choose Grade
2.000" x 2.000" x 2.000", Railway
305 $135.00
Choose Grade
2.000" x 2.000" x 2.000", Tramway
410S $200.00
Choose Grade
2.000" x 2.000" x 3.000", Railway
310 $200.00
Choose Grade
2.000" x 2.000" x 3.000", Tramway
855 $448.00
Choose Grade
2.000" x 2.000" x 8.000", Pencil
720R $108.00
Choose Grade
2.000" x 3.000" x 1.000", Straight
Part Price
Specifications
720S $108.00
Choose Grade
2.000" x 1.000" x 3.000", Straight
722S $155.00
Choose Grade
2.000" x 1.500" x 3.000", Straight
206 $250.00
Choose Grade

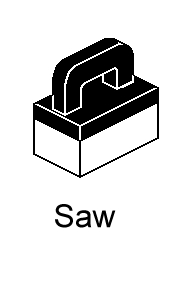

2.000" x 2.000" x 4.000", Saw
220 $275.00
Choose Grade
2.000" x 2.000" x 5.000", Saw
722R $155.00
Choose Grade
2.000" x 3.000" x 1.500", Straight
306R $158.00
Choose Grade
2.000" x 3.000" x 1.500", Tramway
310R $210.00
Choose Grade
2.000" x 3.000" x 2.000", Tramway
415 $270.00
Choose Grade
2.000" x 3.000" x 3.000", Railway
Part Price
Specifications
315S $270.00
Choose Grade
2.000" x 3.000" x 3.000", Tramway
6237R $270.00 Grade: Rubrite
2.000" x 3.000" x 3.000", Tramway
420 $320.00
Choose Grade
2.000" x 3.000" x 4.000", Railway
210 $320.00
Choose Grade
2.000" x 3.000" x 4.000", Saw
320S $320.00
Choose Grade
2.000" x 3.000" x 4.000", Tramway
230 $395.00
Choose Grade
2.000" x 3.000" x 5.000", Saw
320R $320.00
Choose Grade
2.000" x 4.000" x 3.000", Tramway
6270R $500.00 Grade: Rubrite
2.000" x 5.000" x 6.000", Pencil
Part Price
Specifications
211 $320.00
Choose Grade
2.500" x 4.000" x 4.000", Saw
200 $200.00
Choose Grade
3.000" x 1.000" x 4.000" Saw
205 $270.00
Choose Grade
3.000" x 1.500" x 4.000", Saw
411 $195.00
Choose Grade
3.000" x 2.000" x 3.000", Railway
711S $80.00
Choose Grade
3.000" x 2.000" x 3.000", Straight
311S $270.00
Choose Grade
3.000" x 2.000" x 3.000", Tramway
Part Price
Specifications
207 $320.00
Choose Grade
3.000" x 2.000" x 4.000", Saw
225 $400.00
Choose Grade
3.000" x 2.000" 5.000", Saw
240 $450.00
Choose Grade
3.000" x 2.000" x 6.000", Saw
311R $270.00
Choose Grade
3.000" x 3.000" x 2.000", Tramway
711R $270.00
Choose Grade
3.000" x 3.000" x 2.000", Straight
6228R $340.00 Grade: Rubrite
3.000" x 3.000" 2.000", Railway
6238R $340.00 Grade: Rubrite
3.000" x 3.000" x 2.000", Tramway
235 $570.00
Choose Grade
3.000" x 3.000" x 5.000",Saw
Part Price
Specifications
215 $590.00
Choose Grade
3.000" x 4.000" x 4.000", Saw
245 $790.00
Choose Grade
3.000" x 4.000" x 6.000", Saw
100 $990.00
Choose Grade
3.000" x 4.000" x 8.000", Double Saw
116 $1,190.00
Choose Grade
3.000" x 5.000" x 7.000", Double Saw
117 $1,390.00
Choose Grade
3.000" x 5.000" x 9.000", Double Saw
118 $1,590.00
Choose Grade
3.000" x 6.000" x 10.000", Double Saw
105 $1,190.00
Choose Grade
3.000" x 7.000" x 5.000", Double Saw
Part Price
Specifications
110 $1,390.00
Choose Grade
3.000" x 9.000" x 5.000", Double Saw
115 $1,690.00
Choose Grade
3.000" x 10.000" x 6.000", Double Saw
208 $390.00
Choose Grade
4.000" x 2.000" x 4.000", Saw
6229R $400.00 Grade: Rubrite
4.000" x 3.000" x 2.000", Railway
6239R $400.00 Grade: Rubrite
4.000" x 3.000" x 2.000", Tramway
242 $850.00
Choose Grade
4.000" x 3.000" x 6.000", Saw
247 $990.00
Choose Grade
4.000" x 3.000" x 8.000", Saw
101 $1,050.00
Choose Grade
4.000" x 3.000" x 8.000", Double Saw

Commutator Stone Grades (Grit) - Notes

X (36) - Extracoarse for Copper/Brass. Fast cutting.
36S (36) - for Steel/Iron. Fast cutting
C (46) - Coarse for Copper/Brass. Fast cutting.
60S (60) - for Stel/Iron. General use.
M (90) - Medium
90S (90) - Medium
F (120) - Finish
P (220) - Polish
EP (320) - Extrapolish
