Box Style Mylar Motor Run Capacitors & Accessories
Various Voltages

Box Style Run Capacitor
                          Drawings
Part Number
Price
Specifications

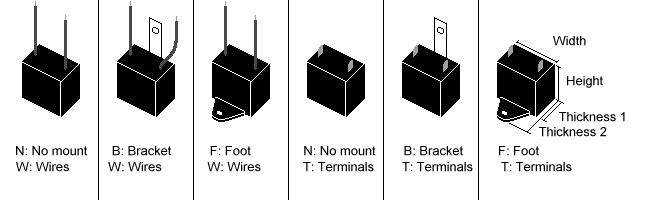

Dimensions given for case size
Terminals add ~0.375" to height
0.33m250Vcube
     w/2 Wires
$8.50
0.33µF, 0.33MFD, 0.33uF, 250VAC,
0.33" x 1.01" x 0.68"
0.4m440Vcube
     w/2 Terminals & Foot
$12.50
0.4µF, 0.4MFD, 0.4uF, 440VAC,
0.58"(1.04") x 1.31" x 1.03"
0.85m250Vcube
     w/2 Terminals & Foot
$12.50
0.85µF, 0.85MFD, 0.85uF, 250VAC,
0.51"(0.98") x 1.28" x 0.87"
1m250VcubeS
     w/wire leads
$12.50
1µF, 1MFD, 1uF, 250VAC,
0.43" x 1.24" x 0.75"
1m250Vcube
     w/2 Terminals & Foot
$12.50
1µF, 1MFD, 1uF, 250VAC,
0.51"(0.98") x 1.28" x 0.87"
1m350Vcube
     w/2 Terminals & Foot
$7.40
1µF, 1MFD, 1uF, 350VAC,
0.52"(0.92") x 1.55" x 0.91"
1m400Vcube
     w/2 Wires
$6.50
1µF, 1MFD, 1uF, 400VAC,
0.58" x 1.26" x 0.95"
1m450Vcube
     w/2 Wires & Foot
$12.50
1µF, 1MFD, 1uF, 450VAC,
0.43"(0.83") x 1.46" x 0.99"
1.2m250Vcube
     w/2 Wires & Foot
$12.50
1.2µF, 1.2MFD, 1.2uF, 250VAC,
0.51"(0.98") x 1.28" x 0.87"
1.2m450Vcube
     w/2 Terminals & Foot
$12.50
1.2µF, 1.2MFD, 1.2uF, 450VAC,
0.63"(1.11") x 1.49" x 1.09"
1.3m250Vcube
     w/Terminals & Foot
$12.50
1.3µF, 1.3MFD, 1.3uF,
250VAC, 0.51"(0.98") x 1.28" x 0.87"
1.3m440Vcube
     w/2 Terminals & Foot
$13.50
1.3µF, 1.3MFD, 1.3uF, 440VAC,
0.64"(1.11") x 1.51" x 1.07"
1.5m250Vcube
     w/2 Terminals & Foot
$12.50
1.5µF, 1.5MFD, 1.5uF, 250VAC,
0.51"(0.98") x 1.28" x 0.87"
1.5m250VcubeT
     w/2 Terminals & Foot
$5.60
1.5µF, 1.5MFD, 1.5uF, 250VAC,
0.44"(0.84") x 1.26" x 0.84"
1.5m350Vcube
     w/2 Terminals & Foot
$7.40
1.5µF, 1.5MFD, 1.5uF, 350VAC,
0.51"(0.92") x 1.55" x 0.90"
1.5m400Vcube
     w/2 Wires
$7.00
1.5µF, 1.5MFD, 1.5uF, 400VAC,
0.62" x 1.64" x 1.12"
Box Style Run Capacitor
                          Drawings
Part Number
Price
Specifications
Dimensions given for case size
Terminals add ~0.375" to height
1.5m450Vcube
     w/2 Terminals & Foot
$10.00
1.5µF, 1.5MFD, 1.5uF, 450VAC,
0.60"(0.98") x 1.54" x 0.97"
1.6m250Vcube
     w/2 Terminals & Foot
$12.50
1.6µF, 1.6MFD, 1.6uF, 250VAC,
0.51"(0.98") x 1.28" x 0.87"
1.8m400Vcube
     w/2 Terminals & Foot
$20.00
1.8µF, 1.8MFD, 1.8uF, 400VAC,
0.71"(1.10") x 1.45" x 1.05"
1.8m450Vcube
     w/2 double Terminals
    & Foot
$20.00
1.8µF, 1.8MFD, 1.8uF, 450VAC,
0.83"(1.22") x 1.49" x 1.21"
2m250Vcube
     w/2 Terminals & Foot
$6.20
2µF, 2MFD, 2uF, 250VAC,
0.43"(0.81") x 1.25" x 0.84"
2m250VcubeW
     w/2 Wires
$6.20
2µF, 2MFD, 2uF, 250VAC,
0.43" x 1.24" x 0.75"
2m350Vcube
     w/2 Terminals & Foot
$8.40
2µF, 2MFD, 2uF, 350VAC,
0.52"(0.92") x 1.55" x 0.92"
2m400Vcube
     w/2 Wires
$7.50
2µF, 2MFD, 2uF, 400VAC,
0.62" x 1.64" x 1.12"
2m450Vcube
     w/terminals & Foot
$12.50
2µF, 2MFD, 2uF, 450VAC,
0.72"(1.08") x 1.46" x 1.06"
2.3m250Vcube
     w/2 Terminals & Foot
$12.50
2.3µF, 2.3MFD, 2.3uF, 250VAC,
0.51"(0.98") x 1.28" x 0.87"
2.5m250Vcube
     w/2 Terminals & Foot
$6.20
2.5µF, 2.5MFD, 2.5uF, 250VAC,
0.43"(0.84") x 1.26" x 0.84"
2.5m350Vcube
     w/2 Terminals & Foot
$9.00
2.5µF, 2.5MFD, 2.5uF, 350VAC,
0.60"(0.98") x 1.54" x 0.97"
2.5m400Vcube
     w/2 Wires
$8.00
2.5µF, 2.5MFD, 2.5uF, 400VAC,
0.62" x 1.64" x 1.12"
2.5m450Vcube
     w/2 Terminals & Foot
$10.00
2.5µF, 2.5MFD, 2.5uF, 450VAC,
0.79"(1.18") x 1.54" x 1.14"
3m250Vcube
     w/2 Wires & Foot
$12.50
3µF, 3MFD, 3uF, 250VAC,
0.41(0.80)" x 1.50" x 0.89"
Box Style Run Capacitor
                          Drawings
Part Number
Price
Specifications
Dimensions given for case size
Terminals add ~0.375" to height
3m250VcubeT
     w/2 Terminals & Foot
$6.80
3µF, 3MFD, 3uF, 250VAC,
0.52(0.93)" x 1.55" x 0.91"
3m350Vcube
     w/2 Terminals & Foot
$10.00
3µF, 3MFD, 3uF, 350VAC,
0.67(1.06)" x 1.53" x 1.02"
3m400Vcube
     w/2 Wires
$8.50
3µF, 3MFD, 3uF, 400VAC,
0.68" x 1.64" x 1.28"
3m450Vcube
     w/2 Terminals & Foot
$10.00
3µF, 3MFD, 3uF, 450VAC,
0.79(1.22)" x 1.94" x 1.16"
3.3m250Vcube
     w/2 Wires
$12.50
3.3µF, 3.3MFD, 3.3uF, 250VAC,
0.51" x 1.26" x 0.95"
3.5m250Vcube
     w/2 Terminals & Foot
$7.40
3.5µF, 3.5MFD, 3.5uF, 250VAC,
0.54(0.91)" x 1.53" x 0.92"
3.5m350Vcube
     w/2 Terminals & Foot
$10.00
3.5µF, 3.5MFD, 3.5uF, 350VAC,
0.78(1.17)" x 1.55" x 1.14"
3.5m450Vcube
     w/2 Terminals & Foot
$10.00
3.5µF, 3.5MFD, 3.5uF, 450VAC,
0.78(1.22)" x 1.97" x 1.26"
3.5m+1.5m250Vcube
     w/3 Wires, No mount
$12.50
3.5+1.5µF, 3.5+1.5MFD, 3.5+1.5uF, 250VAC,
0.70" x 1.51" x 1.10", dual for ceiling fans
4m250VFW2
     w/2 Wires & Foot
$13.90
4µF, 4MFD, 4uF, 250VAC,
0.53"(0.94") x 1.47" x 0.91"
4m250Vcube
     w/2 Wires & Foot
$17.50
4µF, 4MFD, 4uF, 250VAC,
0.61"(1.11") x 1.48" x 1.04"
4m250VcubeT
     w/2 Terminals & Foot
$8.40
4µF, 4MFD, 4uF, 250VAC,
0.52"(0.92") x 1.55" x 0.90"
4m350Vcube
     w/2 Terminals & Foot
$10.00
4µF, 4MFD, 4uF, 350VAC,
0.75"(1.18") x 1.54" x 1.14"
4m400Vcube
     w/2 Wires
$9.00
4µF, 4MFD, 4uF, 400VAC,
0.80" x 1.66" x 1.48"
Box Style Run Capacitor
                          Drawings
Part Number
Price
Specifications
Dimensions given for case size
Terminals add ~0.375" to height
4m450Vcube
     w/2 Terminals & Foot
$12.50
4µF, 4MFD, 4uF, 450VAC,
0.78"(1.18") x 1.94" x 1.17"
4.5m250Vcube-type1
     w/2 Terminals & Foot
$16.00
4.5µF, 4.5MFD, 4.5uF, 250VAC,
0.71"(1.10") x 1.46" x 1.05"
4.5m250Vcube-type2
     w/2 double Terminals
     & Foot
$15.00
4.5µF, 4.5MFD, 4.5uF, 250VAC,
0.71"(1.10") x 1.46" x 1.05"
4.75m450Vcube
     w/2 Wires & Foot
$14.50
4.75µF, 4.75MFD, 4.75uF, 450VAC,
0.73"(1.14") x 1.84" x 1.18"
5m250Vcube
     w/2 Terminals & Foot
$12.50
5µF, 5MFD, 5uF, 250VAC,
0.61"(1.11") x 1.48" x 1.04"
5m250VcubeW
     w/2 Wires & Foot
$12.50
5µF, 5MFD, 5uF, 250VAC,
0.65"(1.13") x 1.51" x 1.00"
5m370Vcube
     w/2 Terminals & Foot
$20.00
5µF, 5MFD, 5uF, 370VAC,
0.80"(1.22") x 2.00" x 1.19"
5m450Vcube
     w/2 Terminals & Foot
$15.00
5µF, 5MFD, 5uF, 450VAC,
0.88"(1.23") x 1.94" x 1.18"
5.5m250Vcube
     w/2 double Terminals
     & Foot
$18.00
5.5µF, 5.5MFD, 5.5uF, 250VAC,
0.72"(1.14") x 1.47" x 1.13"
6m250Vcube
     w/2 Terminals & Foot
$10.00
6µF, 6MFD, 6uF, 250VAC
0.67(1.07)" x 1.53" x 1.02"
6m250VcubeTab
     w/2 Terminals
     & Bracket
$10.00
6µF, 6MFD, 6uF, 250VAC
0.61"(tab) x 1.51" x 1.03"
6m350Vcube
     w/2 Terminals & Foot
$10.00
6µF, 6MFD, 6uF, 350VAC
0.80(1.23)" x 1.94" x 1.18"
Box Style Run Capacitor
                          Drawings
Part Number
Price
Specifications
Dimensions given for case size
Terminals add ~0.375" to height
6m450VcubeW
     w/wire leads & Foot
$12.50
6µF, 6MFD, 6uF, 450VAC
0.60(1.12)" x 1.52" x 0.99"
6m450Vcube
     w/2 Terminals & Foot
$12.50
6µF, 6MFD, 6uF, 450VAC
0.89(1.32)" x 2.00" x 1.30"
6.5m250Vcube-type1
     w/2 double Terminals
     & Foot
$18.00
6.5µF, 6.5MFD, 6.5uF, 250VAC
0.81(1.20)" x 1.49" x 1.20"
6.5m250Vcube-type2
     w/2 double Terminals
     & Foot
$22.00
6.5µF, 6.5MFD, 6.5uF, 250VAC
0.74(1.15)" x 1.87" x 1.13"
7m200Vcube
     w/2 Terminals & Foot
$20.00
7µF, 7MFD, 7uF, 200VAC,
0.81"(1.21") x 1.48" x 1.20"
7m450Vcube
     w/2 double Terminals
     & Foot
$33.00
7µF, 7MFD, 7uF, 450VAC,
1.34"(1.96") x 2.27" x 1.95"
7.5m250Vcube
     w/2 Wires & Foot
$25.00
7.5µF, 7.5MFD, 7.5uF, 250VAC,
0.73"(1.14") x 1.88" x 1.16"
8m250Vcube
     w/2 Terminals & Foot
$10.00
8µF, 8MFD, 8uF, 250VAC,
0.77"(1.18") x 1.54" x 1.15"
8m350Vcube
     w/2 Terminals & Foot
$12.50
8µF, 8MFD, 8uF, 350VAC,
0.89"(1.32") x 2.00" x 1.30"
8m450Vcube
     w/2 Terminals & Foot
$12.50
8µF, 8MFD, 8uF, 450VAC,
1.18"(1.64") x 2.01" x 1.58"
8.5m250Vcube
     w/2 Wires & Foot
$14.50
8.5µF, 8.5MFD, 8.5uF, 250VAC,
0.68"(1.09") x 1.46" x 1.16"
9m250Vcube
     w/4 terminals & Foot
$25.00
9µF, 9MFD, 9uF, 250VAC,
0.89"(1.32") x 2.27" x 1.39"
Box Style Run Capacitor
                          Drawings
Part Number
Price
Specifications
Dimensions given for case size
Terminals add ~0.375" to height
9m440VFT2
     w/2 double Terminals
     & Foot
$31.50
9µF, 9MFD, 9uF, 440VAC,
1.26"(1.70") x 1.86" x 1.50"
10m250Vcube
     w/2 Terminals & Foot
$11.50
10µF, 10MFD, 10uF, 250VAC,
0.87"(1.25") x 1.54" x 1.30"
10m250VcubeW
     w/2 Wires & Foot
$11.50
10µF, 10MFD, 10uF, 250VAC,
0.78"(1.28") x 1.51" x 1.23"
10m350Vcube
     w/2 Terminals & Foot
$12.50
10µF, 10MFD, 10uF, 350VAC,
1.18"(1.63") x 2.01" x 1.58"
10m450Vcube
     w/2 Terminals & Foot
$15.00
10µF, 10MFD, 10uF, 450VAC,
1.19"(1.63") x 2.02" x 1.59"
11m250Vcube
     w/2 double Terminals
     & Foot
$27.00
11µF, 11MFD, 11uF, 250VAC,
0.84"(1.26") x 1.85" x 1.22"
11m450VFT2
     w/2 double Terminals
     & Foot
$31.50
11µF, 11MFD, 11uF, 450VAC,
1.19"(1.61") x 1.87" x 1.71"
12m180Vcube
     w/2 Wires & Foot
$24.00
12µF, 12MFD, 12uF, 180VAC,
0.86"(1.37") x 1.54" x 1.33"
12m200Vcube
     w/2 Terminals & Foot
$26.00
12µF, 12MFD, 12uF, 200VAC,
0.81"(1.22") x 1.88" x 1.21"
12m220Vcube
   w/2 Terminals & Foot
$25.00
12µF, 12MFD, 12uF, 220VAC,
0.62"(1.19") x 2.35" x 1.28"
12m250VcubeT2
     w/2 double Terminals
     & Foot
$28.00
12µF, 12MFD, 12uF, 250VAC,
0.85"(1.25") x 2.26" x 1.36"
12m250Vcube
   w/2 Wires & Foot
$25.00
12µF, 12MFD, 12uF, 250VAC,
1.02"(1.52") x 2.29" x 1.74"
Box Style Run Capacitor
                          Drawings
Part Number
Price
Specifications
Dimensions given for case size
Terminals add ~0.375" to height
12m350Vcube
   w/Terminals
   & Foot
$27.50
12µF, 12MFD, 12uF, 350VAC,
0.87"(1.24") x 2.28" x 1.47"
12m450VFT2
   w/2 double Terminals
   & Foot
$31.50
12µF, 12MFD, 12uF, 450VAC,
1.02"(1.52") x 2.29" x 1.74"
12.5m250Vcube
     w/2 Wires & Foot
$25.00
12.5µF, 12.5MFD, 12.5uF, 250VAC,
0.81"(1.28") x 1.97" x 1.20"
13m250Vcube
     w/2 Wires & Foot
$25.00
Call for quote
13µF, 13MFD, 13uF, 250VAC,
0.80"(1.21") x 2.26" x 1.21"
13m300Vcube
     w/2 Terminals & Foot
$37.50
13µF, 13MFD, 13uF, 300VAC,
0.92"(1.37") x 2.28" x 1.46"
14m250Vcube
     w/2 double Terminals
     & Foot
$26.00
14µF, 14MFD, 14uF, 250VAC,
0.82"(1.25") x 2.26" x 1.36"
15m250Vcube
     w/2 Terminals & Foot
$33.00
15µF, 15MFD, 15uF, 250VAC,
0.89"(1.39") x 2.35" x 1.40"
15m300Vcube
     w/Bracket & Wires
$37.70
15µF, 15MFD, 15uF, 300VAC,
1.14" x 2.30" x 1.63"
15m350Vcube
     w/2 Terminals & Foot
$32.50
15µF, 15MFD, 15uF, 350VAC,
0.83"(1.25)" x 2.26" x 1.40"
16m250Vcube
     w/2 Wires
     & Bracket
$24.00
16µF, 16MFD, 16uF, 250VAC,
0.91" x 1.84" x 1.56"
16m250VcubeT
     w/2 double Terminals
     & Foot
$27.00
16µF, 16MFD, 16uF, 250VAC,
0.90"(1.51") x 2.26" x 1.44"
16m350Vcube
     w/Terminals & Foot
$27.75
16µF, 16MFD, 16uF, 350VAC,
1.10"(1.52") x 2.28" x 1.63"
16m450Vcube
     w/Terminals & Foot
$28.50
16µF, 16MFD, 16uF, 450VAC,
1.20"(1.67") x 2.31" x 1.74"
18m250Vcube
     w/2 Wires & Foot
$27.50
18µF, 18MFD, 18uF, 250VAC,
1.09"(1.57") x 2.27" x 1.59"
18m250VcubeT1
     w/2 double Terminals
     & Foot
$28.00
18µF, 18MFD, 18uF, 250VAC,
0.90"(1.51") x 2.26" x 1.44"
18m250VcubeT2
     w/2 double Terminals
     & Foot
$39.00
18µF, 18MFD, 18uF, 250VAC,
1.12"(1.72") x 2.27" x 1.59"
Box Style Run Capacitor
                          Drawings
Part Number
Price
Specifications
Dimensions given for case size
Terminals add ~0.375" to height
20m200Vcube
     w/2 Terminals & Foot
$32.00
20µF, 20MFD, 20uF, 200VAC,
0.90"(1.51") x 2.26" x 1.44"
20m250VcubeT
     w/2 double Terminals
     & Foot
$33.00
20µF, 20MFD, 20uF, 250VAC,
1.12"(1.72") x 2.27" x 1.59"
20m250Vcube
     w/2 Wires
$27.50
20µF, 20MFD, 20uF, 250VAC,
1.34" x 2.09" x 1.43"
20m450Vcube
     w/2 Wires & Foot
$29.50
20µF, 20MFD, 20uF, 450VAC,
1.21"(1.60") x 1.99" x 1.71"
20m450VcubeT
     w/Terminals & Foot
$29.50
20µF, 20MFD, 20uF, 450VAC,
1.24"(1.67") x 2.25" x 1.98"
22m450Vcube
     w/2 Terminals & Foot
$27.00
22µF, 22MFD, 22uF, 450VAC, 500VAC
1.23"(1.66") x 2.96" x 1.98", Coleman
25m200Vcube
     w/2 Terminals & Foot
$35.00
25µF, 25MFD, 25uF, 200VAC
1.13"(1.72") x 2.27" x 1.59"
25m250Vcube
     w/2 double Terminals
     & Foot
$34.00
25µF, 25MFD, 25uF, 250VAC
1.34"(1.96") x 2.27" x 1.95"
25m450Vcube
     w/2 Wires and Harness
     & Foot
$40.00
25µF, 25MFD, 25uF, 450VAC
1.41"(1.89") x 2.66" x 1.92"
28m250Vcube
     w/2 double Terminals
     & Foot
$35.00
28µF, 28MFD, 28uF, 250VAC
1.33"(1.96") x 2.26" x 1.92"
30m250Vcube
     w/2 terminals
     & Foot
$20.00
30µF, 30MFD, 30uF, 250VAC
1.18"(1.64") x 2.00" x 1.57"
30m250Vcube-type1
     w/2 double Terminals
     & Foot
$44.00
30µF, 30MFD, 30uF, 250VAC
1.35"(1.97") x 2.27" x 1.97"
30m250Vcube-type2
     w/2 double Terminals
     & Foot
$35.00
30µF, 30MFD, 30uF, 250VAC
1.35"(1.97") x 2.78" x 1.97"
35m250Vcube
     w/2 double Terminals
     & Foot
$40.00
35µF, 35MFD, 35uF, 250VAC
1.33"(1.97") x 2.26" x 1.97"
Box Style Run Capacitor
                          Drawings
Part Number
Price
Specifications
Dimensions given for case size
Terminals add ~0.375" to height
40m250Vcube
     w/2 Terminals & Foot
$45.00
40µF, 40MFD, 40uF, 250VAC
1.61"(2.21") x 2.28" x 2.26"

Resistor Drawing

Part Number Price
Description
93105
$2.00
1W220kOhm resistor
