Brush Holder Caps
back to brush holder main page
Round Brush Holders here

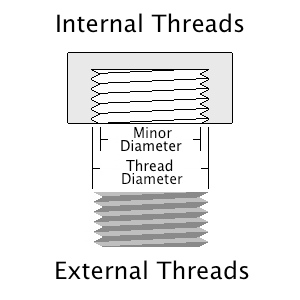

Cap 1 Drawing Thread Spec Drawing

Part (Thread) Price
Specifications
BRC1-0.234/32 $9.50
Cap 1, Thread: 0.234x32
BRC1-0.250/24 $4.50
Cap 1, Thread: 0.250x24, All plastic, only very bottom is threaded
BRC201 $4.75
Cap 1, Thread: 0.250x32
BRC202 $3.00
Cap 1, Thread: 0.281x32
BRC240 Obsolete Cap 1, Thread: 0.312x24
BRC204 $6.75
Cap 1, Thread: 0.312x32
BRC4517 $5.50
Cap 1, Thread: 0.375x24
BRC205 $3.00
Cap 1, Thread: 0.375x32
BRC212 $3.00
Cap 1, Thread: 0.437x27
BRC211 $3.50
Cap 1, Thread: 0.437x32
BRC218 $3.00
Cap 1, Thread: 0.484x32
BRC221 Obsolete Cap 1, Thread: 0.500x24
BRC4519 $7.50
Cap 1, Thread: 0.500x27, w/O-Ring

Brush Holder Caps
back to brush holder main page
Round Brush Holders here

Cap 1 Drawing Thread Spec Drawing

BRC1430 $8.25
Cap 1, Thread: 0.500x32
BRC930 $5.65
Cap 1, Thread: 0.562x27
BRC1380 $8.50
Cap 1, Thread: 0.562x32
BRC225 $4.50
Cap 1, Thread: 0.625x32
BRC1BDT11 $5.50
Cap 1, Thread: 0.625x34
BRC230 $6.00
Cap 1, Thread: 0.750x24
BRC1-0.812/16 $5.50
Cap 1, Thread: 0.812x16
BRC1-22/1 $4.50
Cap 1, Thread: M22x1
BRC1-0.875/25 $12.50
Cap 1, Thread: 0.875x25
BRC1-24/1 $5.00
Cap 1, Thread: M24x1
BRC34 $5.52
Cap 1, Thread: 1.187x18 (0.427" total height)
BRC1001 $5.62
Cap 1, Thread: 1.187x18 (0.330" total height)

Brush Holder Caps
back to brush holder main page
Round Brush Holders here

Cap style 2 drawing Thread Spec Drawing
BRC239 $1.50
Cap 2, Thread: 0.281x24
33127BD Obsolete Cap 2, Thread: 0.312x32
BRC208 $2.50
Cap 2, Thread: 0.375x24
BRC216 $1.70
Cap 2, Thread: 0.437x24
BRC220 $1.56
Cap 2, Thread: 0.500x27
BRC220P $3.00
Cap 2, Thread: 0.500x27, Phillips head screw, 0.312" tall
BRC37 $6.50
Cap 2, Thread: 0.500x27 (0.216" total height), w/brass insert
BRC226
   BRC242
$1.70
Cap 2, Thread: 0.625x27

Brush Holder Caps
back to brush holder main page
Round Brush Holders here

Cap style 2 drawing Thread Spec Drawing
Part (Thread) Price
Specifications
BRC2-700/18 $6.50
Cap 2, Thread: 0.700x18
BRC2-3/4x18 $4.50
Cap 2, Thread: 0.750x18
BRC248 $2.30
Cap 2, Thread: 0.750x27
BRC248HEX $5.50
Cap 2, Thread: 0.750x27, 0.375" hex drive + slot
BRC248P $4.50
Cap 2, Thread: 0.750x24, Phillips head screw, 0.312" tall
BRC2-812/24 $2.00
Cap 2, Thread: 0.812x24
BRC2-875/18 $3.00
Cap 2, Thread: 0.875x18
BRC249 $2.75
Cap 2, Thread: 0.875x27
BRC250 $6.00
Cap 2, Thread: 1.000x18, Reliance: 422964001A
BRC2-12/1 $2.50
Cap 2, Thread: M12x1
BRC2-13/1 $3.00
Cap 2, Thread: M13x1
BRC2-15.5/1 $4.20
Cap 2, Thread: M15.5x1

Brush Holder Caps
back to brush holder main page
Round Brush Holders here

  Cap style 2 drawing Thread Spec Drawing
Part (Thread) Price
Specifications
BRC2-16/1 $4.00
Cap 2, Thread: M16x1
BRC2-17.5/1 $4.20
Cap 2, Thread: M17.5x1
BRC2-18/1 $5.00
Cap 2, Thread: M18x1
BRC2-20/1 $5.00
Cap 2, Thread: M20x1
BRC2-20/1.5 $5.00
Cap 2, Thread: M20x1.5
BRC2-22/1 $4.50
Cap 2, Thread: M22x1
BRC2-32/1 $15.00
Cap 2, Thread: M32x1

Brush Holder Caps
back to brush holder main page
Round Brush Holders here

  Cap 3 Drawing Thread Spec Drawing
Part (Thread) Price
Specifications
BRC203 $6.25
Cap 3, Thread: 0.312x32, Plastic & Brass
Minor diameter: 0.282"
BRC441 $5.25
Cap 3, Thread: 0.375x27, Plastic & Brass
Minor diameter: 0.344"
BRC206 $3.00
Cap 3, Thread: 0.375x32, Plastic & Brass
Minor diameter: 0.344"
BRC213 $3.75
Cap 3, Thread: 0.437x27, Plastic & Brass
Minor diameter: 0.390"
BRC245 $3.75
Cap 3, Thread: 0.437x28, Plastic & Brass
Minor diameter: 0.390"
BRC3-93111 $3.75
Cap 3, Thread: 0.468x32, All plastic
Minor diameter: 0.440"
BRC222 Obsolete Cap 3, Thread: 0.500x20, All plastic
BRC247 $3.50
Cap 3, Thread: 0.500x24, All plastic
Minor diameter: 0.457"
BRC246 Obsolete Cap 3, Thread: 0.531x20, All plastic
Minor diameter: 0.500"
BRC224 $12.95
Cap 3, Thread: 0.562x18, All plastic
Minor diameter: 0.503"
BRC3-0.562x24 $3.00
Cap 3, Thread: 0.562x24, All plastic
Minor diameter: 0.473"
BRC223 $4.50
Cap 3, Thread: 0.562x27, Plastic & Brass
Minor diameter: 0.530"
BRC227 $4.50
Cap 3, Thread: 0.625x18, All plastic
Minor diameter: 0.570"
BRC228 $4.50
Cap 3, Thread: 0.687x18, All plastic
Minor diameter: 0.628"
BRC3-875/18 $6.00
Cap 3, Thread: 0.875x18, All plastic
Minor diameter: 0.813"
BRC116
Ridgid 44545
$4.75
Cap 3, Thread: 0.937x21, All plastic
Minor diameter: 0.890"
BRCA56
Leroy Somers: 9DCAPMFA56
$4.75
Cap 3, Thread: 1.187x20, All plastic
Minor diameter: 1.120"
BRC3-10/1 $3.00
Cap 3, Thread: M10x1, All plastic
Minor diameter: 8.6mm
BRC3-16/1 $4.75
Cap 3, Thread: M16x1, All plastic
Minor diameter: 15mm
BRC3-16.5x1 $17.50
Cap 3, Thread: 16.5Mx1, All plastic, Siemens
Minor diameter: 15mm

Round Brush Holders
back to brush holder main page
Holder 1 Drawings Holder 2
                Drawing
Part Price
Specifications
BH-OD375 $12.50
Brush: 0.125/0.250" x 0.209" wedge, Round length: 0.625"
Total length: 1.050", ~Holder 2
BH14326 $25.00
Brush: 0.125" x 0.125", o.d.: 0.406", Round length: N/A,
Total length: 0.875", Holder 2
BH14326W $25.00
Brush: 0.125" x 0.125", o.d.: 0.437" & 0.531", Round length: 0.875",
Total length: 1.125", takes BRC208 cap, Holder 2
BAH4517
Includes BRC208 cap
$27.50
Brush: 0.125" x 0.187", o.d.: 0.475" & 0.525", Round length: 0.818",
Total length: 1.125", cap BRC208 or BRC4517, Holder 2
BH125-250
Includes BRC208 cap
$35.00
Brush: 0.125" x 0.250", o.d.: 0.437" & 0.531", Round length: 0.703",
Total length: 0.950", takes BRC208 cap, Holder 2
BH11509
Includes BRC1-0.234/32 cap
$37.50
Brush: 0.156" x 0.156", o.d.: 0.406" & 0.437", Round length: 0.704",
Total length: 0.875", takes BRC1-0.234/32 cap, Holder 2
BH4-6 $25.00
Brush: 4mm x 6mm, o.d.: 15mm & 16.3mm, Round length: 22mm,
Total length: 29mm, takes BRC2-12/1 cap, Holder 2
BH11570S Obsolete
Consider BH11570 below
Brush: 0.187" x 0.187", o.d.: 0.437", Round length: 0.444",
Total length: 0.553", takes BRC204 cap, Holder 1
BH11570
Includes BRC1-0.234/32 cap
$37.50
Brush: 0.187" x 0.187", o.d.: 0.437" & 0.484", Round length: 0.670"
Total length: 0.875", Holder 2, Takes BRC1-0.234/32 cap
BH11570L
Includes BRC208 cap
$17.50
Brush: 0.187" x 0.187", o.d.: 0.437" & 0.530", Round length: 1.000",
Total length: 1.187", Holder 2, Takes BRC208 cap
BHBC6 $25.00
Brush: 0.187" x 0.187", o.d.: 0.375" & 0.500", Round length: N/A,
Total length: 1.500", All Brass, Holder 2
BH187-14LN
Includes BRC220cap
$29.50
Brush: 0.187" x 0.250", o.d.: 0.531" & 0.625", Round length: 0.750"
Total length: 0.970", Holder 2, Takes BRC220 cap
BH187-14S
Includes BRC220cap
$21.50
Brush: 0.187" x 0.250", o.d.: 0.531" & 0.625", Round length: 0.812"
Total length: 1.250", Holder 2, Takes BRC220 cap
BH19011 $37.50
Brush: 0.187" x 0.250", o.d.: 0.562" & 0.625", Round length: N/A,
Total length: 1.312", Holder 2
BH187-516 $20.00
Brush: 0.187" x 0.312", o.d.: 0.625" & 0.750", Round length: 0.750"
Total length: 1.000", Holder 2

Round Brush Holders
back to brush holder main page
Holder 1 Drawings Holder 2
                Drawing
Part Price
Specifications
BH187-58
Includes BRC249 cap
$54.50
Brush: 0.187" x 0.625", o.d.: 1.000", Round length: 0.800",
Total length: 1.125", Electrocraft, takes cap BRC249, Holder 1
FAH187-58
Consider 457-0002-01 below
Similar and cheaper
$117.50
Brush: 0.187" x 0.625", o.d.: 1.000", Round length: 1.000",
Total length: 1.625", Fanuc, Terminal on flat, Holder 1
457-0002-01
Includes BRC249 cap
$72.50
Brush: 0.187" x 0.625", o.d.: 1.000", Round length: 1.250",
Total length: 1.625", FanucGettys, Cap BRC249, Holder 1, Tab on 0.187" brass side
457-0002-02
Includes BRC249 cap
$72.50
Brush: 0.187" x 0.625", o.d.: 1.000", Round length: 1.250",
Total length: 1.625", FanucGettys, Cap BRC249, Holder 1, Tab on round brass
BD306 $25.00
Brush: 0.218" x 0.281", o.d.: 0.562", Round length: N/A,
Total length: 1.250", Black&Deck, Holder 1
ROY306 $17.50
Brush: 0.218" x 0.281", o.d.: 0.571" & 0.689", Round length: 1.125,
Total length: 1.437", Royal, cap BRC220, Holder 2
BH218-38 $27.50
Brush: 0.218" x 0.375", o.d.: 0.625" & 0.682", Round length: 1.500",
Total length: 1.790", Bodine, cap BRC220, Holder 2
FAH6x16
Includes BRC2-22/1 cap
$68.50
Brush: 6mm x 16mm, o.d.: 30mm, Round length: 30mm,
Total length: 45mm, Fanuc, w/2 butt connectors, Cap BRC2-22/1, Holder 1
FAH6x25
Includes BRC2-32/1 cap
$82.50
Brush: 6mm x 25mm, o.d.: 37mm, Round length: 29mm,
Total length: 47mm, Fanuc, w/round plate, Cap BRC2-32/1, Holder 1
BAH9209
Includes BRC220 cap
$55.50
Brush: 0.250" x 0.250", o.d.: 0.531" & 0.625", Round length: 1.062",
Total length: 1.625", Baldor, Holder 2, Takes cap BRC220
BH250-14 Obsolete: Consider
BAH9209 above.
Brush: 0.250" x 0.250", o.d.: 0.531" & 0.625", Round length: 1.125",
Total length: 1.500", takes BRC220 cap, Holder 2
BH11527S $27.50
Brush: 0.250" x 0.250", o.d.: 0.562" & 0.688", Round length: 0.812"
Total length: 1.062", takes BRC220 cap, Holder 2
BH11527 $30.00
Brush: 0.250" x 0.250", o.d.: 0.562" & 0.688", Round length: 1.000"
Total length: 1.250", takes BRC220 cap, Holder 2
BH11527L
Includes BRC220 cap
$32.50
Brush: 0.250" x 0.250", o.d.: 0.562" & 0.688", Round length: 1.125"
Total length: 1.500", takes BRC220 cap, Holder 2
BAH1100
Includes BRC220 cap
$14.50
Brush: 0.250" x 0.250", o.d.: 0.625" & 0.750", Round length: 1.000",
Total length: 1.250", takes BRC220 cap, Baldor, Holder 2

Round Brush Holders
back to brush holder main page
Holder 1 Drawings Holder 2
                Drawing
Part Price
Specifications
BAH1097
Includes BRC220 cap
$46.50
Brush: 0.250" x 0.375", o.d.: 0.625" & 0.750", Round length: 1.000",
Total length: 1.218", Baldor, Holder 2, Takes cap BRC220
BAH9203
Includes BRC220 cap
$42.50
Brush: 0.250" x 0.375", o.d.: 0.625" & 0.750", Round length: 1.000",
Total length: 1.406", Baldor, Holder 2, Takes cap BRC220
BH14292 $55.00
Brush: 0.250" x 0.375", o.d.: 0.671" & 0.718", Round length: N/A,
Total length: 1.437", Takes cap BRC218, Holder 2
BH250-716S
Comes with BRC226 cap
$23.50
Brush: 0.250" x 0.437", o.d.: 0.812", Round length: 1.000"
Total length: 1.200", Holder 1, takes BRC226 cap, Has 0.312" x 0.700" flat spot
BH250-716
Comes with BRC248 cap
$27.50
Brush: 0.250" x 0.437", o.d.: 0.875", Round length: 1.250",
Total length: 1.500", Holder 1, takes BRC248 cap
BHBDT11 $39.50
Brush: 0.250" x 0.500", o.d.: 0.812" & 0.875", Round length: 1.178",
Total length: 1.500", Holder 2, takes BRCBDT11 cap above
CNH5986
Includes BRC226 cap
$49.50
Brush: 0.250" x 0.500", o.d.: 0.812", Round length: 1.500",
Total length: 2.000", Century, Holder 1, takes BRC226 above
PSH5051
Includes BRC248 cap
$49.50
Brush: 0.250" x 0.500", o.d.: 0.875", Round length: 1.000",
Total length: 1.437", Pacific Scientific, Holder 1, takes BRC248
CNH5051
Includes BRC248 cap
$39.50
Brush: 0.250" x 0.500", o.d.: 0.875", Round length: 1.500",
Total length: 2.000", Century, Holder 1, Takes BRC248 cap
RM311 $39.50
Brush: 0.250" x 0.500", o.d.: 0.875", Round length: 1.500",
Total length: 1.875", Robbins&M, Holder 1
BH250-500 $17.50
Brush: 0.250" x 0.500", o.d.: 0.937" & 1.062", Round length: 1.153",
Total length: 1.500", Skil , Holder 2, takes BRC248
CNH5052
Includes BRC249 cap
$52.50
Brush: 0.250" x 0.500", o.d.: 1.000", Round length: 1.500",
Total length: 2.000", Century, Holder 1, Takes BRC249 cap

Round Brush Holders
back to brush holder main page
Holder 1 Drawings Holder 2
                Drawing
Part Price
Specifications
BH250-530 $17.50
Brush: 0.250" x 0.530", o.d.: 0.885" & 0.921", Round length: 1.000",
Total length: 1.375",
has QM-0.250" Porter, Holder 2, use BRC.18/1
RM310
Includes BRC249 cap
$65.00
Brush: 0.250" x 0.625", o.d.: 1.000", Round length: 1.500",
Total length: 1.937", Robbins&M, Holder 1, Takes BRC249 cap
RM312B
Includes BRC250 cap
$37.50
Brush: 0.250" x 0.750", o.d.: 1.125" & 1.250", Round length: 1.400",
Total length: 1.700", takes BRC250 cap, Holder 2
RM312A
Includes BRC249 cap
$65.00
Brush: 0.250" x 0.750", o.d.: 1.125", Round length: 1.500",
Total length: 1.937", takes BRC249 cap, Robbins&M, Holder 1
BH7-11 $17.50
Brush: 7mm x 11mm, o.d.: 25mm & 26.5mm, Round length: 26.5mm,
Total length: 33mm, Hitachi, Holder 2, takes BRC2-16/1
BH7-13 $17.50
Brush: 7mm x 13mm, o.d.: 25mm & 26.5mm, Round length: 21mm,
Total length: 35mm, Hitachi, Holder 2, takes BRC2-20/1
BH7-17 $17.50
Brush: 7mm x 17mm, o.d.: 25mm & 26.5mm, Round length: 26.5mm,
Total length: 33mm, Ryobi, Holder 2, takes BRC2-22/1
BH7-17H $17.50
Brush: 7mm x 17mm, o.d.: 27mm & 28.5mm, Round length: 21mm,
Total length: 35mm, Hitachi, Holder 2, takes BRC2-20/1
BH7-17QM $17.50
Brush: 7mm x 17mm, o.d.: 25mm & 26.5mm, Round length: 26.5mm,
Total length: 33mm, has QM-6.3mm, Holder 2, takes BRC2-22/1
BH7-18QM $17.50
Brush: 7mm x 18mm, o.d.: 28mm & 29mm, Round length: 22.5mm,
Total length: 33mm, has QM-6.3mm, Holder 2, takes BRC2-22/1

Round Brush Holders
back to brush holder main page
Holder 1 Drawings Holder 2
                Drawing
Part Price
Specifications
BH312-516S
Includes BRC220 cap
$23.50
Brush: 0.312" x 0.312", o.d.: 0.625" & 0.750", Round length: 0.812",
Total length: 1.000", Leeson, cap BRC220, Holder 2
BH312-516
Includes BRC220 cap
$24.50
Brush: 0.312" x 0.312", o.d.: 0.625" & 0.750", Round length: 0.875",
Total length: 1.187", Leeson, cap BRC220, Holder 2
BH312-516M
Includes BRC220 cap
$25.50
Brush: 0.312" x 0.312", o.d.: 0.625" & 0.750", Round length: 0.875",
Total length: 1.187", Miller, w/2 opposing knurls, cap BRC220, Holder 2
BH312-516L
Includes BRC220 cap
$26.50
Brush: 0.312" x 0.312", o.d.: 0.625" & 0.750", Round length: 1.062",
Total length: 1.312", Leeson, cap BRC220, Holder 2
BAH4533
Baldor BP4533
Includes BRC226 cap
$42.50
Brush: 0.312" x 0.437", o.d.: 0.750" & 0.812", Round length: 1.125",
Total length: 1.312", cap BRC226, Holder 2
BAH9204
Includes BRC226 cap
$42.50
Brush: 0.312" x 0.437", o.d.: 0.812", Round length: 1.000",
Total length: 1.687", cap BRC226, Baldor, Holder 1
BAH9210
Includes BRC226 cap
$59.50
Brush: 0.312" x 0.437", o.d.: 0.812" & 0.937", Round length: 1.000",
Total length: 1.656", cap BRC226, Baldor, Holder 2
UM300
Includes BRC248HEX cap
$27.50
Brush: 0.312" x 0.500", o.d.: 0.875" & 1.000", Round length: 1.187",
Total length: 1.437", Universal, Cap BRC248HEX, Holder 2
BAH9205 $35.00
Brush: 0.312" x 0.500", o.d.: 0.875", Round length: 1.187",
Total length: 1.437", Baldor, Holder 1
BH312-916
Includes BRC248 cap
$37.50
Brush: 0.312" x 0.562", o.d.: 0.875", Round length: 1.000",
Total length: 1.250", Bison, Takes BRC248 cap, Holder 1
BAH9207
Includes BRC249 cap
$51.00
Brush: 0.312" x 0.625", o.d.: 1.125", Round length: 1.000",
Total length: 1.656", Baldor, Holder 1, takes BRC249 cap
BAH9211
Includes BRC249 cap
$38.50
Brush: 0.312" x 0.625", o.d.: 1.000" & 1.125", Round length: 1.250",
Total length: 1.656", Baldor, Holder 2, takes BRC249 cap
CNH5053
Includes BRC249 cap
$57.50
Brush: 0.312" x 0.625", o.d.: 1.000", Round length: 1.500",
Total length: 2.000", Century, Holder 1, Takes BRC249 cap

Round Brush Holders
back to brush holder main page
Holder 1 Drawings Holder 2
                Drawing
Part Price
Specifications
RTH1 $30.00
Brush: 0.343" x 0.750", o.d.: 1.125" & 1.156", Round length: 1.187",
Total length: 1.500", Ridgid 45025,  cap BRC116, Holder 2
FAH9x25
Includes BRC2-32/1 cap
$82.50
Brush: 9mm x 25mm, o.d.: 37mm, Round length: 29mm,
Total length: 45mm, Fanuc, w/round plate, Cap BRC2-32/1, Holder 1
BH12166 $75.00
Brush: 0.375" x 0.375", o.d.: 0.813" & 0.921", Round length: N/A,
Total length: 1.812", Holder 2
BAH9212
Includes BRC249 cap
$56.50
Brush: 0.375" x 0.750", o.d.: 1.062" & 1.250", Round length: 1.250",
Total length: 1.812", Baldor, Holder 2, takes BRC249 cap
BAH9214
Includes BRC249 cap
$52.50
Brush: 0.375" x 0.750", o.d.: 1.062" & 1.250", Round length: 1.250",
Total length: 2.000", Baldor, Holder 2, takes BRC249 cap
ONH9206
Includes BRC249 cap
$47.50
Brush: 0.375" x 0.750", o.d.: 1.125" w/0.375 x 0.625 flat spot, Round length: 1.000",
Total length: 1.688", Onan, Holder 1, takes BRC249 cap
BAH9206
Includes BRC249 cap
$67.50
Brush: 0.375" x 0.750", o.d.: 1.125", Round length: 1.250",
Total length: 2.000", Baldor, Holder 1, takes BRC249 cap
BH10x12.5 $17.25
Brush: 10mm x 12.5mm, o.d.: 25mm" & 30mm, Round length: 30.5mm,
Total length: 36.5mm, Holder 2, cap BRC1-24/1
BH31392 $80.00
Brush: 0.500" x 0.500", o.d.: 1.125" & 1.250", Round length: N/A,
Total length: 1.812", Holder 2
BH35439 $96.00
Brush: 0.500" x 0.750", o.d.: 1.515" & 1.656", Round length: N/A,
Total length: 2.031", Holder 2
BH35440 $106.00

Brush: 0.750" x 0.750", o.d.: 1.515" & 1.656", Round length: N/A,
Total length: 2.031", Holder 2

Leeson brush cover
back to brush holder main page
900322.01 Drawing
Part Price
Specifications
900322.01-D $2.50
Size: 1.82" x 3.12"
