Klixon 7851 and 7854 Series
12.5 to 60 Amp Commercial, Sealed, Ignition Protected Thermal Breakers
Series Specification Sheets


Klixon 7851 Drawing Klixon 7854 Drawing

    Using a bimetal, snap-acting disc as the sensing and actuating element, this thermal circuit breaker provides trouble free over-current protection for harsh environments.


Price: $55.00 each

Manual reset (7851):
7851 »

  Automatic reset (7854):
7854 »


Series First Suffix Designation
7851-**-Amp 7854-**-Amp Stud Length Perspective Drawing
18 18 0.310" Klixon 7851.310 Drawing
37 26 0.455" Klixon 7851.455 Drawing
13
36
15 0.610" Klixon 7851.610 Drawing
32   0.357" Klixon 7851.32 Drawing

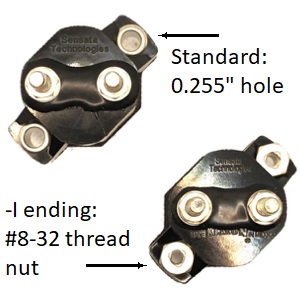

Klixon 7851 Regular and I Drawing

Master list (order above):
7851-13-12.5, 7851-13-15, 7851-13-17.5, 7851-13-20, 7851-13-25, 7851-13-30, 7851-13-35, 7851-13-40, 7851-13-50, 7851-13-60, 7851-18-12.5, 7851-18-15, 7851-18-17.5, 7851-18-20, 7851-18-25, 7851-18-30, 7851-18-35, 7851-18-40, 7851-18-50, 7851-18-60, 7851-37-12.5, 7851-37-15, 7851-37-17.5, 7851-37-20, 7851-37-25, 7851-37-30, 7851-37-35, 7851-37-40, 7851-37-50, 7851-37-60, 7854-15-12.5, 7854-15-15, 7854-15-17.5, 7854-15-20, 7854-15-25, 7854-15-30, 7854-15-35, 7854-15-40, 7854-15-50, 7854-15-60, 7854-18-12.5, 7854-18-15, 7854-18-17.5, 7854-18-20, 7854-18-25, 7854-18-30, 7854-18-35, 7854-18-40, 7854-18-50, 7854-18-60, 7854-26-12.5, 7854-26-15, 7854-26-17.5, 7854-26-20, 7854-26-25, 7854-26-30, 7854-26-35, 7854-26-40, 7854-26-50, 7854-26-60, 7851-13-12.5-I, 7851-13-15-I, 7851-13-17.5-I, 7851-13-20-I, 7851-13-25-I, 7851-13-30-I, 7851-13-35-I, 7851-13-40-I, 7851-13-50-I, 7851-13-60-I, 7851-18-12.5-I, 7851-18-15-I, 7851-18-17.5-I, 7851-18-20-I, 7851-18-25-I, 7851-18-30-I, 7851-18-35-I, 7851-18-40-I, 7851-18-50-I, 7851-18-60-I, 7851-32-10-I, 7851-32-15-I, 7851-32-20-I, 7851-32-40-I, 7851-36-60-I, 7851-37-12.5-I, 7851-37-15-I, 7851-37-17.5-I, 7851-37-20-I, 7851-37-25-I, 7851-37-30-I, 7851-37-35-I, 7851-37-40-I, 7851-37-50-I, 7851-37-60-I, 7854-15-12.5-I, 7854-15-15-I, 7854-15-17.5-I, 7854-15-20-I, 7854-15-25-I, 7854-15-30-I, 7854-15-35-I, 7854-15-40-I, 7854-15-50-I, 7854-15-60-I, 7854-18-12.5-I, 7854-18-15-I, 7854-18-17.5-I, 7854-18-20-I, 7854-18-25-I, 7854-18-30-I, 7854-18-35-I, 7854-18-40-I, 7854-18-50-I, 7854-18-60-I, 7854-26-12.5-I, 7854-26-15-I, 7854-26-17.5-I, 7854-26-20-I, 7854-26-25-I, 7854-26-30-I, 7854-26-35-I, 7854-26-40-I, 7854-26-50-I, 7854-26-60-I
