Brush Holder Assemblies
back to brush holder main page
CPED2 drawing      CP685H4
                Drawing
Part Price
Application/Notes
CPED2 $95.00
Eaton Dynamatic four brush assembly: 1.500" x 2.625" x 1.875"
More information here: Eaton Dynamatic brush page
CP685H4 $81.35
Warner Electric four brush assembly: 1.437" x 2.625" x 1.875"
More information here: Warner Electric Brake brush page

Single Holder Drawing
Part Price
Application/Notes
EF8x16single $105.00
8mm x 16mm brush box. Elektra Faurndau.
6.5mm x 8mm bolt slot. 14mm c-c mounting on bracket.
EF8x19single $105.00
8mm x 19mm brush box. Elektra Faurndau.
Takes brush: L8-19
EF8x20single $105.00
8mm x 20mm brush box. For Elektra Faurndau

Double Holder Drawing
Part Price
Application/Notes
EF6.4x20double $95.00
6.4mm x 20mm brush boxes. Elektra Faurndau.
EF8x16double $125.00
8mm x 16mm brush boxes. Elektra Faurndau.
6mm x 24mm bolt slot. 14mm c-c mounting on bracket.
EF8x19double $135.00
8mm x 19mm brush boxes. Elektra Faurndau.
Takes brush: L8-19
EF8x38double $145.00
8mm x 38mm brush boxes. Elektra Faurndau.

Triple Holder Drawing
Part Price
Application/Notes
EF6.4x20triple $140.00
6.4mm x 20mm brush boxes. Elektra Faurndau.
EF8x16triple $188.00
8mm x 16mm brush boxes. Elektra Faurndau.
Three 6.5mm x 8mm bolt slots. 14mm c-c mounting on bracket.
EF8x16triple
including brushes
$200.00
Grade
Above holder including 3 brushes (select material)
EF8x19triple $230.00
8mm x 19mm brush boxes. Elektra Faurndau.
Takes brush: L8-19
EF8x20triple $188.00
8mm x 19mm brush boxes. Elektra Faurndau.
EF10x20triple $195.00
8mm x 19mm brush boxes. Elektra Faurndau.
Part Price
Application/Notes

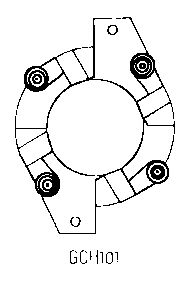

GCH100 $146.00
GE Cart Motor   Brush Size: 0.500" x 0.625"

Part Price
Application/Notes
GCH101 $150.00
GE Cart Motor   Brush Size: 0.500" x 0.625"
For 4 single brushes
GCH101PR $50.00
GE Cart Motor   Brush Size: 0.500" x 0.625"
For 2 paired brushes
GCI101-4
   Plastic Insulator
$9.50
Outside: 0.555" x 0.555" x 0.227"
Inside: 0.338" x 0.338"
GCI101-5
   Plastic Insulator
$9.50
Outside: 0.555" x 0.555" x 0.340"
Inside: 0.338" x 0.338"
GCW101-6
   Round fiberglass washer
$7.50
Outside: 0.887" diameter x 0.121" tall
Inside: 0.330" diameter
GCW101-9
   Round fiberglass washer
$7.50
Outside: 0.887" diameter x 0.121" tall
Inside: 0.468" diameter
GCW101-13
   Square fiberglass washer
$7.50
Outside: 0.887" x 0.887" x 0.122"
Inside: 0.330" diameter

Part Price
Application/Notes
ISK9-16BHleft $31.50
Iskra   Brush Size: 9mm x 16mm. Pictured above.
ISK9-16BHright $31.50
Iskra   Brush Size: 9mm x 16mm. Mirror image of picture above.

Part Price
Application/Notes

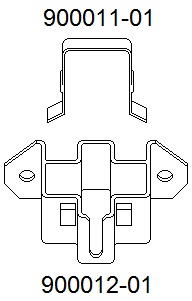

900012-01 $6.99
Leeson   Brush Size: 0.375" x 1.25"
Aluminum, Mouting holes: 1.875" center-to-center
900011.01 $2.00
Leeson spring retainer for 900012-01 holder above

Part Price
Application/Notes

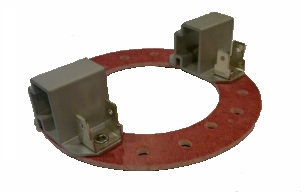

LNH900116 $35.00
Leeson Holder for brush size: 0.375" x 0.781"
  Takes brushes: 900163.11 or 900163Probe
Mounting configurations (holes center-to-center):
A: 2.75", B: 2.812" x 1.125", C: 2.25" x 2.25"

Part Price
Application/Notes
LN900328-4 $42.50
Leeson Holder for brush size: 0.375" x 1.250"
  Takes brushes: 900010.01, 900015.02, 900015.15, 900015.01,
900015.03, 900015.07, 900015.08, 900015.14, 900015.18,
900189.14,900251.19, 900251.20

Mounting configurations (holes center-to-center):
A: 3.75", B: 3.25" x 1.875", C: 3.00" x 3.00"

Part Price
Application/Notes

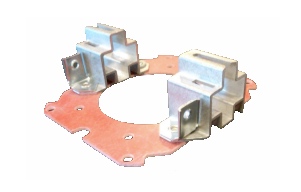

LNH900015-2
   For 2 brushes
$52.50
Leeson Holder for 2 brushes size: 0.375" x 1.250"
  Takes brushes: 900010.01, 900015.02, 900015.15, 900015.01,
900015.03, 900015.07, 900015.08, 900015.14, 900015.18,
900189.14,900251.19, 900251.20

Mounting configurations (holes center-to-center):
A: 4.25", B: 3.25" x 1.875", C: 4.25" x 3.00"
LNH900015-4
   For 4 brushes
$52.50
Leeson Holder for 4 brushes size: 0.375" x 1.250"
  Takes brushes: 900010.01, 900015.02, 900015.15, 900015.01,
900015.03, 900015.07, 900015.08, 900015.14, 900015.18,
900189.14,900251.19, 900251.20

Mounting configurations (holes center-to-center):
A: 4.25", B: 3.25" x 1.875", C: 4.25" x 3.00"

Part Price
Application/Notes
4-4600D Obsolete   Magnetek   Brush Size: 0.375" x 0.750"

GEH Series Drawing
Part Price
Application/Notes
GEH401
   36B167280AAG01
   36B467011AAH02
   GE model # 5CD152...
   GE model # 5CD153...
   GE model # 5CD154...
   GE model # 5CD163...
   GE model # 5CD164...
$175.00
GE: 36A167280AAG01   Brush Size: 0.875" x 0.625"
Brass material
GEH402
   36A167281AAG01
   36B467012AAH02
   GE model #5CD173...
   GE model #5CD174...
   GE model #5CD183...
   GE model #5CD184...
$195.00
GE: 36A167281AAG01   Brush Size: 1.250" x 0.750"
Brass material

BH375x14 Drawing
Part Price
Application/Notes
BH375x14
   Shaft grounding
   Bearing protection
$250.00
Brass body size: 1.500" x 1.375" x 0.500"
Mounting holes: 0.937" x 0.375"
Brush Size: 0.375" x 0.250"
One required for up to 4.000" shaft diameter
Two for 4.000 - 8.000" Three for 8.000" and above

Part Price
Application/Notes
41C636837P1 $236.42
GE   Two Brushes Size: 0.375" x 0.750"
Plastic body, 1.75" center-to-center mountiung, diameter: 0.420"

Part Price
Application/Notes
05-***-***-*** series RFQ   Allis-Chalmers
129-*** series RFQ   Allis-Chalmers
132-*** series RFQ   Allis-Chalmers
51-***-***-*** RFQ   Allis-Chalmers
53-***-***-*** RFQ   Allis-Chalmers
1225585 RFQ   Crocker Wheeler
2443 RFQ   Crocker Wheeler
299*** series RFQ   Crocker Wheeler
3***** series RFQ   Crocker Wheeler
4***** series RFQ   Crocker Wheeler
68019 RFQ   Crocker Wheeler
772195 RFQ   Crocker Wheeler

Part Price
Application/Notes
17554**G* RFQ   GE
2368983 RFQ   GE
269278G* RFQ   GE
36A160421AAG02
Casting 36B465471 BAH03
GE model # 5CD203...
GE model # 5CD204...
$165.00
GE: for brush 36A161401 and 36A164451 (0.750" x 1.500")
Includes spring assembly 81A
36A160422AAG02
Casting 36B465472AA RHEO
GE model # 5CD222...
GE model # 5CD223...
GE model # 5CD224...
GE model # 5CD226...
$165.00
GE: for brush 36A164452 (0.875" x 1.500")
Includes spring assembly 82A
36A160423AAG02
Casting 36B465473AA
$195.50
GE: for brush 36A161403 and 36A164453 (1.000" x 1.500")
Includes spring assembly 83A
36A160426AAG01
Casting 36B465476AA RHEO
GE model # 5CD192...
GE model # 5CD193...
GE model # 5CD194...
$236.50
GE: for brush 36A164456 (0.625" x 1.250")
Includes spring assembly 86A
36A161103AAG01
Casting 36B465073AA H01
$165.00
GE: for brush 36A161403 and 36A164453 (1.000" x 1.500")
Includes spring assembly GES208

Part Price
Application/Notes
36A172040AAG01 $275.00
GE: for two brushes 36A164456 (0.625" x 1.500")
Includes two spring assemblies OA1
36A172040AAG02 RFQ   GE: for two brushes 36A164455 (0.500" x 1.500")
Includes two spring assemblies
36A172040AAG03 RFQ   GE: for two brushes 36A164454 (0.375" x 1.500")
Includes two spring assemblies

Part Price
Application/Notes
375602*** series RFQ   GE
41C******G* series RFQ   GE: Transportation & Diesel
41D******G* series RFQ   GE: Transportation & Diesel
4788* series RFQ   GE
4813380G** series RFQ   GE
5513647G* series RFQ   GE

5980811G03
                Drawing
Part Price
Application/Notes
5980811G01 RFQ   GE: 5980811 1, CD/MCF, GE-171
Two brushes per holder: 0.625" x 1.500"
5980811G02 RFQ   GE: 5980811 2, CD/MCF, GE-132
Two brushes per holder: 0.500" x 1.500"
5980811G03 $150.00
GE: 5980811 3, CD/MCF, GE-262
Two brushes per holder: 0.375" x 1.500"
5980811G04 RFQ   GE: 5980811 4, CD/MCF, GE-603
Two brushes per holder: 0.500" x 1.500"
5980811G05 RFQ   GE: 5980811 5, CD/MCF, GE-132
Two brushes per holder: 0.500" x 1.500"
5980811G06 RFQ   GE: 5980811 6, CD/MCF, GE-262
Two brushes per holder: 0.375" x 1.500"
5980822G01 RFQ   GE: 5980822 1, CD, GE-207
Two brushes per holder: 0.625" x 1.500"
5980822G02 RFQ   GE: 5980822 2, CD, GE-212
Two brushes per holder: 0.500" x 1.500"
5980822G03 RFQ   GE: 5980822 3, CD, GE-2201
Two brushes per holder: 0.375" x 1.500"

Part Price
Application/Notes
5BT1380A1C RFQ   GE
5CD28F99A900021 RFQ   GE
674****G* series RFQ   GE
6X*** series RFQ   GE
722467G2 RFQ   GE
724519G1 RFQ   GE
724582G2 RFQ   GE
7274482 RFQ   GE
7479**G* series RFQ   GE
754124G** series RFQ   GE
807562G1 RFQ   GE
878324*G3 series RFQ   GE
894A6**G* series RFQ   GE

Part Price
Application/Notes
112**** series RFQ   Joy
144086* series RFQ   Joy
591*** series RFQ   Joy
6804* series RFQ   Joy
78712** series RFQ   Joy
A1****** series RFQ   Joy
X50**** series RFQ   Joy
1**** series RFQ   Louis-Allis
2**** series RFQ   Louis-Allis
3**** series RFQ   Louis-Allis
4*** series RFQ   Louis-Allis
5*** series RFQ   Louis-Allis

Part Price
Application/Notes
BHSC-1/3 $75.00
For brush size 0.500" x 1.500 with 25° brush/mount angle.
Includes constant pressure spring assembly
40712-R RFQ   Reliance: for one brush size 0.375" x 1.000"
41002-R RFQ   Reliance: for one brush size 0.437" x 1.000"
41002-S RFQ   Reliance: for one brush size 0.437" x 1.000"
41002-T RFQ   Reliance: for one brush size 0.437" x 0.875"
41003-R RFQ   Reliance: for one brush size 0.500" x 1.500"
41031-S RFQ   Reliance: for one brush size 0.625" x 2.000"
60203-S RFQ   Reliance: for one brush size 0.437" x 1.500"
60203-SR RFQ   Reliance: for one brush size 0.437" x 0.875"
60203-SS RFQ   Reliance: for one brush size 0.437" x 1.125"
60203-ST, 60203-T RFQ   Reliance: for one brush size 0.500" x 1.375"
60203-SU RFQ   Reliance: for one brush size 0.625" x 1.375"
60521-R RFQ   Reliance: for one brush size 0.750" x 1.875"
60521-S RFQ   Reliance: for one brush size 0.625" x 1.875"
60521-T RFQ   Reliance: for one brush size 0.625" x 1.500"
61995-R RFQ   Reliance: for two brushes size 0.375" x 0.750"
63080-RA RFQ   Reliance: for one brush size 0.375" x 0.375"
66720-R RFQ   Reliance: for one brush size 0.625" x 1.250"
70420-R RFQ   Reliance: for one brush size 0.750" x 2.000"
70420-S RFQ   Reliance: for one brush size 0.625" x 2.000"
70621-R RFQ   Reliance: for one brush size 0.625" x 2.000"
71857-R
W-71857
RFQ   Reliance: for one brush size 0.375" x 1.000"
71857-S
X-71857
RFQ   Reliance: for one brush size 0.375" x 1.375"
74731-R
X-74730
RFQ   Reliance: for one brush size 0.375" x 1.000"
74732-A
74732-R
RFQ   Reliance: for one brush size 0.375" x 1.375"
74733-1
74733-1R
RFQ   Reliance: for two brushes size 0.625" x 1.375"
74733-R RFQ   Reliance: for two brushes size 0.375" x 1.000"
75537-R
W-75537
RFQ   Reliance: for one brush size 0.437" x 1.000"
75537-S
W-75537-1
RFQ   Reliance: for one brush size 0.500" x 1.000"
75540-1
75540-R
RFQ   Reliance: for one brush size 0.500" x 1.500"
75540-S
W-75540-1
RFQ   Reliance: for one brush size 0.625" x 1.500"
75541-1
75541-R
RFQ   Reliance: for one brush size 0.625" x 1.250"
75541-S RFQ   Reliance: for one brush size 0.750" x 1.250"
77327R RFQ   Reliance: for one brush size 0.437" x 0.875"
609416-2R RFQ   Reliance: for one brush size 0.500" x 1.625"
609416-2S RFQ   Reliance: for one brush size 0.625" x 1.625"
609417-2R $179.50
Reliance: for one brush size 0.750" x 1.625"
609417-2S RFQ   Reliance: for one brush size 0.875" x 1.625"
609482-1WBA RFQ   Reliance: for one brush size 0.750" x 1.625"
700304-1R RFQ   Reliance: for one brush size 0.375" x 1.250"
700304-3R RFQ   Reliance: for one brush size 0.375" x 1.250"
700304-3S RFQ   Reliance: for one brush size 0.500" x 1.250"
700304-5R RFQ   Reliance: for one brush size 0.500" x 1.500"
700342-1W RFQ   Reliance: for one brush size 0.375" x 0.750"
700343-1R RFQ   Reliance: for one brush size 0.375" x 1.250"
700345-2R RFQ   Reliance: for two brushes size 0.375" x 1.250"
701437-12A RFQ   Reliance: for two brushes size 0.625" x 1.500"
701437-20A RFQ   Reliance: for two brushes size 0.500" x 1.500"
A-22184
YW-60203
RFQ   Reliance: for one brush size 0.500" x 1.375"
U-60521 RFQ   Reliance: for one brush size 0.750" x 1.875"
W-60521-C RFQ   Reliance: for one brush size 0.750" x 1.500"
W-75546-1
W-75546-S
RFQ   Reliance: for one brush size 0.875" x 1.500"
W-75546-R RFQ   Reliance: for one brush size 0.750" x 1.500"
WW-60203 RFQ   Reliance: for one brush size 0.437" x 0.875"
X-60521 RFQ   Reliance: for one brush size 0.625" x 1.875"
XW-60203 RFQ   Reliance: for one brush size 0.437" x 1.125"
Y-60521 RFQ   Reliance: for one brush size 0.625" x 1.500"
Z-60521 RFQ   Reliance: for one brush size 0.500" x 1.500"

4110D65 Holder Drawing
Part Price
Application/Notes
4110D65H17 $237.50
Westinghouse for brush 769A782G17 size 0.750" x 1.500"
4110D65H18 $237.50
Westinghouse for brush 769A782G18 size 1.000" x 1.500"
4110D65H19 $237.50
Westinghouse for brush 769A782G19 size 1.250" x 1.500"

Part Price
Application/Notes
1550-*** series RFQ   Westinghouse
155227* series RFQ   Westinghouse
373C506G01 RFQ   Westinghouse
3822** series RFQ   Westinghouse
4117D69G** series RFQ   Westinghouse
556D008G RFQ   Westinghouse
560D203G01 RFQ   Westinghouse
704C***G0* series RFQ   Westinghouse
82267* series RFQ   Westinghouse
***-**** series RFQ   Westinghouse
J***** series RFQ   Westinghouse


Part Price
Application/Notes
H4-10 RFQ   Brush size: 0.500" x 1.250"
H4-12 RFQ   Brush size: 0.500" x 1.500"
H4-14 RFQ   Brush size: 0.500" x 1.750"
H5-10 RFQ   Brush size: 0.625" x 1.250"
H5-12 RFQ   Brush size: 0.625" x 1.500"
H5-14 RFQ   Brush size: 0.625" x 1.750"
H6-10 RFQ   Brush size: 0.750" x 1.250"
H6-12 RFQ   Brush size: 0.750" x 1.500"
H6-14 RFQ   Brush size: 0.750" x 1.750"
H7-10 RFQ   Brush size: 0.875" x 1.250"
H7-12 RFQ   Brush size: 0.875" x 1.500"
H7-14 RFQ   Brush size: 0.875" x 1.750"
H8-10 RFQ   Brush size: 1.000" x 1.250"
H8-12 RFQ   Brush size: 1.000" x 1.500"
H8-14 RFQ   Brush size: 1.000" x 1.750"
H9-12 RFQ   Brush size: 1.125" x 1.500"
H9-14 RFQ   Brush size: 1.125" x 1.750"
H10-12 $225.00
Brush size: 1.250" x 1.500", Holder is 2.000" tall
Includes 8# constanct pressure spring
H10-14 RFQ   Brush size: 1.250" x 1.750"
H12-6 RFQ   Brush size: 1.500" x 0.750"


Part Price
Application/Notes
HCP2
   Shaft grounding
   Bearing protection
$75.00
Brass body size: 0.750" x 0.750" x 0.237"
Mounting holes: 0.500" x 0.375-0.500"
Brush size: 0.125" x 0.187"
Shaft diameter up to 1.25"
