V-Type Spring Assemblies for Brush Holders
back to brush holder main page

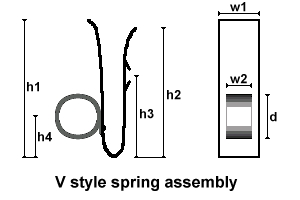

V type spring with diemnsions drwing
Part Price
w1 w2 d h1 h2 h3 h4 Notes
V8x37 $17.50
8mm 5mm 7.5mm 37mm 30mm 15mm 5.5mm
GES500 $64.50
0.50" 0.25" 0.32" 1.62" 1.56" 0.75" 0.35" GE
1.5#
#609860-1C $64.50
0.38" 1.36" 1.42" 0.66" 0.38" Reliance
1.25#
PH-3 $64.50
0.88" 2.28" 1.75" 0.75" 0.41" P & H,
2.5#
RE-68 $62.50
0.62" 0.37" 0.43" 1.97" 1.82" 1.00" 0.31" Reliance,
2.0#
A-2631 $62.50
0.55" 2.00" 1.82" 1.07" 0.39" Wer,
3.0#
#15031
15031-1SP		 $52.50
0.82" 2.50" 2.11" 1.34" 0.46" Baldor, Powertron
5.5#
A-2632 $62.50
0.44" 0.85" 2.70" 2.37" 1.43" 0.45" Wer,
4.0#
609860-1A $57.50
0.75" 0.50" 0.37" 1.38" 1.40" 0.62" 0.41" Reliance
SM-6 $57.50
2.15" 1.95" 1.02" 0.44" AO Smith,
2#
A-2633 $57.50
0.44" 2.80" 2.52" 1.62" 0.31" Wer,
3.5#
RE-3 $57.50
0.69" 2.27" 2.05" 1.02" 0.66" Reliance,
3.0#
V type spring with diemnsions drwing
Part Price
w1 w2 d h1 h2 h3 h4 Notes
#214657-01 $45.00
0.80" 0.31" 0.36" 1.50"       Magnetek
LA304062.1.002 $45.00
1.00" 0.50" 0.50" 2.37"       Louis Allis
DV-3 $48.50
2.50"       Dover
RE-1 $48.50
0.50"
was 0.62"		 0.38" 2.00"
was 1.37"		 1.59"
was 1.42"		 0.68" 0.32"
was 0.52"		 Reliance,
3.0#
#609424-1A
for 0.500" thick brush		 $65.50
1.00" 0.625"

  to

0.750"		 0.55" 2.8" 2.8" 1.29" 0.69" Reliance
#609424-1H
for 0.562" thick brush		 $65.50
0.59" Reliance
#609424-1B
for 0.625" thick brush		 $65.50
0.57" Reliance, 6.0#
#609424-1F
for 0.688" thick brush		 $65.50
0.61" Reliance
#609424-1C
for 0.750" thick brush		 $65.50
0.69" Reliance
#609424-1G
for 0.812" thick brush		 $65.50
0.80" Reliance
#609424-1D
for 0.875" thick brush		 $65.50
0.66" Reliance
#609424-1E
for 0.938" thick brush		 $65.50
0.80" Reliance
V type spring with diemnsions drwing
Part Price
w1 w2 d h1 h2 h3 h4 Notes
DV-2 $56.50
1.00" 0.62" 0.40" 2.39" 1.88" 1.11" 0.30" Dover, 4.0#
#609860-1B $87.50
0.48" 1.37" 1.41" 0.62" 0.41" Reliance
RE-609-6# $56.50
3.00" 2.50" 1.38" 0.25" Reliance,
6.0#
DV-1 $56.50
0.50" 2.50" 2.12" 1.04" 0.40" Dover
3.5#
A-2635 $56.50
0.57" 3.12" 3.37" 2.42" 0.39" Wer
#15778 $56.50
0.60" 3.12" 2.89" 1.70" 0.61" Baldor
Powertron
RE-609-7# $56.50
0.63" 3.00" 2.50" 1.38" 0.25" Reliance,
7.0#
RE-609-8# $56.50
Reliance,
8.0#
US-6 $56.50
0.75" 3.08" 3.33" 2.42" 0.43" US Motors,
6.0#
#36069 $54.50
0.69" 0.53" 2.50" 2.13" 1.35" 0.62" Baldor, Powertron
4.2#
RE-2 $56.50
0.75" 0.53" 1.92" 1.57" 0.69" 0.62"
A-2634
MA-9		 $62.50
0.60" 3.18" 2.87" 1.81" 0.35" Wer 5.5#

VSA Type European Spring Assemblies for Brush Holders
back to brush holder main page

VSA type spring with dimensions drawing
Part Price
B C L A Tension Spring Diam.
VSA12.0x36-4 $35.50
16mm 12mm 38mm 21mm 4Nm 7mm
VSA16.5x43-2 $49.50
22mm 16mm 46mm 28mm 2Nm 8mm
VSA16.5x43-6.2 $49.50
6.2Nm 8mm
VSA16.5x48-8 $49.50
8Nm 12mm
VSA19.5x56-8 $49.50
19mm 54mm 36mm 8Nm 10mm
VSA19.5x56-10 $49.50
10Nm 11mm
VSA19.5x56-12.8 $49.50
12.8Nm 14mm
VSA19.5x56-16 $49.50
16Nm 17mm
VSA19.5x56-20 $49.50
20Nm 20mm

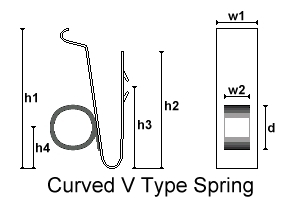

Curved V Type Spring Assemblies for Brush Holders
back to brush holder main page

V flag type spring with dimensions drawing
Part Price
w1 w2 d h1 h2 h3 h4 Notes
#414748-1A $62.50
1.00" 0.62" 0.37" 1.87" 1.57" 0.65" 0.48" Reliance, Tension: 4.0#
LRS-1 $62.50
0.38" 2.42" 2.08" 1.03"
CV-1 $88.50
0.75" 0.52" 1.90" 1.56" 0.65" 0.39" Reliance
414748-1F

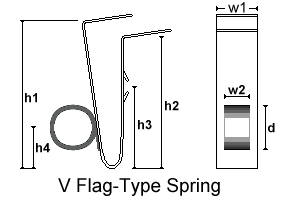

V-Flag Type Spring Assemblies for Brush Holders
back to brush holder main page

V flag type spring with dimensions drawing
Part Price
w1 w2 d h1 h2 h3 h4 Notes
#15064
15064-1		 $54.50
0.50" 0.31" 0.63" 1.50" 1.23" 0.82" 0.42" Baldor
Powertron

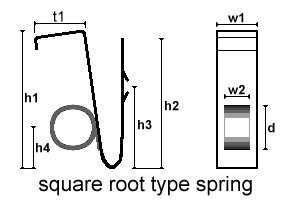

Square Root Spring Assemblies for Brush Holders
back to brush holder main page
Square Root Type Spring Drawing

Part Price
w1 h1 Application/Notes
IMP-1 $49.50
0.594" 1.625" Square root type, Imperial, d=0.330", h2=1.55",
h3=0.78", h4=0.35", w2=0.375", 1.0#
IMP-5 $49.50
Square root type, Imperial, d=0.375", w2=0.250",
2.0#
ABB-1.0# $40.00
0.600" 1.250" Square root type, ABB, d=0.375", w2=0.250",
1.0#
WH-5 $40.00
0.625" 2.000" Square root type, Westinghouse, d=0.38", h2=1.93"
h3=1.00", h4=0.31", w2=0.38", 1.5#, partially insulated
WH-8 $40.00
2.750" Square root type, Westinghouse, d=0.375", w2=0.250",
h2=2.32", h3=1.35", h4=0.38", 2.0#
SGT0.70x1.84 $37.50
0.700" 1.840" Square root type, d=0.350", h2=1.720", h3=1.082",
h4=0.406", w2=0.0.500", t1=0.448", 1.85#
IMP-6 $59.50
1.000" 1.837" Square root type, Imperial, d=0.325", w2=0.625",
2.0#
IMP-2 $59.50
Square root type, Imperial, d=0.375", h2=1.690",
h3=1.000", h4=0.444", t1=0.720, w2=0.750", 2.3#
IMP-4 $59.50
Square root type, Imperial, d=0.400", h2=1.700",
h3=0.965", h4=0.414, t1=0.715", w2=0.625", 3.0#
WH-11A $59.50
2.750" Square root type, Westinghouse, d=0.400", w2=0.625",
h2=2.32", h3=1.35", h4=0.41", 3.0#
WH-13 $59.50
Square root type, Westinghouse, d=0.550", h2=2.35",
h3=1.32", h4=0.32", w2=0.625", 4.2#
WH-16 $62.50
3.000" Square root type, Westinghouse, d=0.550", h2=2.65",
h3=1.68", w2=0.625", 2.25#

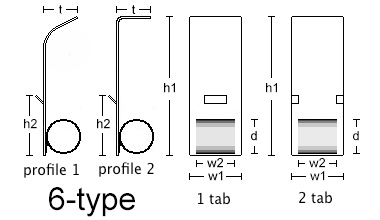

GE 6-Type Spring Assemblies for Brush Holders
back to brush holder main page
Part Price
w1 h1 Application/Notes
BP5030 $19.50
0.500" 1.700" 6-type, 2 tab, profile 1, Baldor, d=0.312",
h2=1.04", t=0.293", w2=0.500"
BP5103 $25.50
0.625" 1.937" 6-type, 1 tab, profile 1, Baldor, d=0.420",
h2=0.803", t=0.4.05", w2=0.375"
BP5028 $19.50
0.750" 1.685" 6-type, 2 tab, profile 1, Baldor, d=0.300",
h2=1.04", t=0.312", w2=0.750"
36B547926G01 $45.00
1.750" 6-type, 1 tab, profile 2, GE, 36B547926--G01,
d=0.500", h2=0.844", t=0.500", w2=0.562"
GE10-2.5# $59.50
3.750" 6-type, 2 tab, profile 2, GE , d=0.750"
h2=2.500", t=0.837", w2=0.500",
Spring rating: 2.5#, <=1800rpm
GE10-3.75# $59.50
6-type, 2 tab, profile 2, GE , d=0.625",
h2=2.500", t=0.837", w2=0.500",
Spring rating: 3.75#, 3600rpm

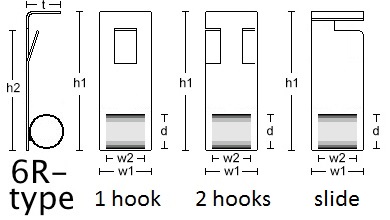

6R-Type Spring Assemblies for Brush Holders
back to brush holder main page
Part Price
w1 h1 Application/Notes
BDTspring $9.75
0.375" 1.000" 6R-type, no hooks, d=0.215", h2=N/A,
t=0.390", w2=0.250"
HT010230 $13.75
0.396" 0.881" 6R-type, 2 hooks, d=0.238", h2=0.705",
t=0.301", w2=0.375"
CLTspring $13.75
0.600" 1.018" 6R-type, slide, Clarke, , d=0.215",
t=0.315", w2=0.375"
#134178102 $7.50
1.000" 2.250" 6R-type, 1 hook, Yale, d=0.426", h2=1.750",
t=0.500", w2=0.750"

Magnetek Spring Assemblies for Brush Holders
back to brush holder main page
Part Price
w1 h1 Application/Notes
SPR480 $29.50
0.625" 1.073" Magnetek, d=0.375", h2=0.911", w2=0.375"
SPR476 $39.50
0.875" 1.444" Magnetek, d=0.375", h2=1.200", w2=0.500"

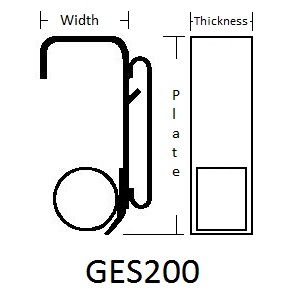

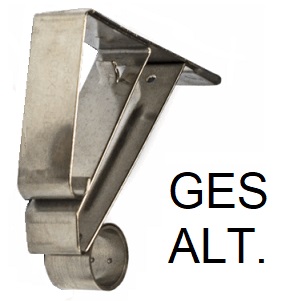

GE Spring Assemblies for Brush Holders
back to brush holder main page
Part Price
Thickness Width Application/Notes
GES201 $50.00
0.437" 0.625" GES200, GE, Plate: 1.500", Spring: 0.375d. x 0.375"
GES202 $74.50
0.375" 0.625" GES200, GE, Plate: 1.406", Spring: 0.500d. x 0.312"
GES203 $75.00
0.500" 0.812" GES200, GE. Plate: 1.531", Spring: 0.687d. x 0.375"
GES204 $65.00
GES200, GE, Plate: 2.281", 3.0# Spring: 0.812d. x 0.500"
GES205 $40.50
0.625" 0.927" GES200, GE, Plate: 2.187", Spring: 0.688d. x 0.500"
GES206 $54.00
1.062" GES200, GE, Plate: 2.500", Spring: 0.875d. x 0.500"
GES207 $108.00
0.750" 0.968" GES200, GE, Plate: 2.312", Spring: 0.750d. x 0.625"
#36B465081AA001
   Marked "D"		 $49.50
1.125" GES200, GE, Plate: 3.000", Spring: 0.844d. x 0.625"
For 0.750" thick brushes
#36B465082AA001
   Marked "E"		 $96.50
GES200, GE, Plate: 3.000", Spring: 0.937d. x 0.625"
For 0.875" thick brushes
GES208
   36B465083AA001
   Marked "F"		 $50.00
GES200, GE, Plate: 3.000", Spring: 1.062d. x 0.625"
For 1.000" thick brushes

Hook Type Spring Assemblies for Brush Holders
back to brush holder main page

Hook Type spring with dimensions drawing
Part Price
w1 w2 d h1 Notes
#900115-01
   900115.01		 $7.50
0.375" 0.313" 0.350" 1.250" Hook Type, 2 hooks, profile 2,
Leeson
#900154-01
   900154.01
   YP00886		 $56.50
0.375" 0.409" 1.750" Hook Type, 1 hook, profile 1,
Leeson, single coil, 1.0#
#900155-01
   900155.01
   YP00888		 $56.50
Hook Type, 1 hook, profile 1,
Leeson, two nested coils

Plate Type Spring Assemblies for Brush Holders
back to brush holder main page
Part Price
Width
w1		 Length
h1		 Application/Notes
#721284100 $7.50
0.375" 1.625" Plate Type, Yale, d=0.355",  w2=0.375", h2: 1.062"
#625B309AA001 $29.50
0.500" 1.750" Plate Type, GE, d=0.423", h2=1.187", w2=0.500"
BP5012A04 $21.50
0.600" 1.250" Plate Type, Baldor, One tab,
  d=.325",  w2=0.250"
SP349 $7.50
0.625" 1.625" Plate Type, Yale/Intrupa, One tab,
d=0.357",  w2=0.375", h2=1.875"
BP5034 $7.50
0.700" 1.125" Plate Type, Baldor, One tab,
d=0.300", w2=0.375"

Bodine Spring Assembly
back to brush holder main page
Part Price
Width
Plate		 Length
Plate		 Application/Notes
#574-00008 $11.75
0.375" 0.875" Bodine, Spring diameter=0.375",  Spring width=0.187"
Previously 574-00001

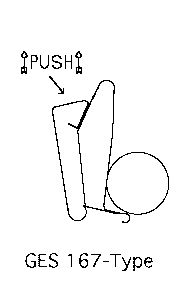

GE 167-Type Spring Assemblies for Brush Holders
back to brush holder main page
Part Price
Thickness Width Application/Notes
#36B467020-1
GE model # 5CD152...
GE model # 5CD153...
GE model # 5CD154...
GE model # 5CD163...
GE model # 5CD164...		 $72.50
0.500" 1.562" GES167-Type, GE, Spring: 0.680d. x 0.375"
#36B467021-1
GE model # 5CD173...
GE model # 5CD174...
GE model # 5CD183...
GE model # 5CD184...		 $47.50
0.700" 2.000" GES167-Type, GE, Spring: 0.770d. x 0.500"

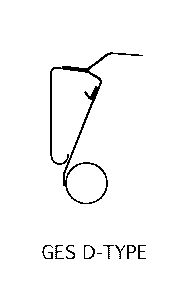

GE D-Type Spring Assemblies for Brush Holders
back to brush holder main page
Part Price
Thickness Width Application/Notes
#36B465484-1 $59.50
0.500" 1.875" GES D-TYPE, GE "84A", Spring: 0.706d. x 0.375"
#36B465485-1 $59.50
0.500" 1.875" GES D-TYPE, GE "85A", Spring: 0.685d. x 0.375"
#36B465487-1 $62.50
0.625" 1.875" GES D-TYPE, GE "87A", Spring: 0.837d. x 0.500"
#36B465482-1
GE model # 5CD222...
GE model # 5CD223...
GE model # 5CD224...
GE model # 5CD226...		 $49.50
2.375" GES D-TYPE, GE "82A", Spring: 0.950d. x 0.500"
for 0.875" thick brush
#36B465486-1
GE model #5CD192...
GE model #5CD193...
GE model #5CD194...		 $38.50
GES D-TYPE, GE "86A", Spring: 0.750d. x 0.500"
for 0.625" thick brush
#36B472000-03 $47.50
GES D-TYPE, GE "0A3", Spring: 0.950d. x 0.500"
#36B465481-1
GE model # 5CD203...
GE model # 5CD204...		 $47.50
0.750" 2.375" GES D-TYPE, GE "81A", Spring: 0.840d. x 0.625"
for 0.750" thick brush
#36B465483-1 $37.50
GES D-TYPE, GE "83A", Spring: 1.000d. x 0.625"
for 1.000" thick brush
#36B465483AE1 $29.50
GES D-TYPE, GE "83AE", Spring: 1.000d. x 0.625"
for 1.000" thick brush

Triangle Type Spring Assemblies for Brush Holders
back to brush holder main page
Triangle Type Spring Drawing
Part Price
h1 w1 Application/Notes
US-2 $47.50
1.625" 0.563" Triangle Type, US Motors, w2=0.375", d=0.375", 1.5#
TB-14 $62.50
85mm 22mm Triangle Type, Toshiba, d=18.5mm, h2=70mm,
t=35mm, w2=19mm, 6.0#

Eighth Note Type Spring Assemblies for Brush Holders
back to brush holder main page
Eighth Note Type Type Spring Drawing
Part Price
h1 w1 Application/Notes
#36C703083-1
GE model # 5CD362...
GE model # 5CD363...
GE model # 5CD372...
GE model # 5CD373...		 $47.50
3.500" 0.750" Eighth Note Type, GE, w2=0.500", d=0.875"

Onan Spring Assemblies for Brush Holders
back to brush holder main page

Onan Spring Drawing

Part Price
Height Width Application/Notes
#212-1105 $17.50
1.250" 0.750" Onan, Spring: 0.312" diam. x 0.312" wide, for 10kW
#212-1106 $25.00
Onan, Spring: 0.375" diam. x 0.375" wide, for 15kW

Otis Spring Assemblies for Brush Holders
back to brush holder main page
Otis Spring Drawing
Part Price
Height Width Application/Notes
OT-1 $59.50
2.750" 0.750" Otis, Spring: 0.400" diameter x 0.625" wide

U-Type Spring Assemblies for Brush Holders
back to brush holder main page
U Type Spring Drawing
Part Price
Height Width Application/Notes
GE-138 $42.50
3.750" 0.687" GE, Spring: 1.000" diameter x 0.500" wide

GE/US Motors Spring Assemblies for Brush Holders
back to brush holder main page
A3063 Spring Drawing
Part Price
Height Width Application/Notes
A3063 $85.00
1.500" 0.562" US, Spring: 0.350" diameter x 0.250" wide, 2.0#
#36A164933CAG01 $85.00
GE, Spring: 0.375" diameter x 0.375" wide
