Tatung and Other Switches
H.S. Number: 8503.00.500
AO Smith    Baldor    Bell & Gosett    Bodine    Centrifugal Mechanisms    Century    Doerr    Electra
Emerson    Flint & Walling    Fan & Limit   Franklin    General Electric    Hobart/Jack & Heinz    Leeson    Leland
Magnetek    Marathon    Master    Reliance    Tatung    Toshiba    US    Wagner    Weg    Westinghouse




2.75" (70mm) c-c mounting holes
1.75" (44mm) c-c bumps metal strip
T70Y (1 set of contacts)   $19.50

3.15" (80mm) c-c mounting holes
1.93" (49mm) c-c bumps metal strip
T80Y49 (1 set of contacts)   $22.50

2.20" (56mm) c-c bumps metal strip
T80Y56 (1 set of contacts)   $22.50

3.54" (90mm) c-c mounting holes
2.48" (63mm) c-c bumps metal strip
T90Y (1 set of contacts)   $31.50

3.94" (100mm) c-c mounting holes
2.95" (75mm) c-c bumps metal strip
T100Y (1 set of contacts)

Obsolete




3.00" (76mm) c-c mounting holes
2.05" (52mm) c-c bumps metal strip
T9700 (2 sets of contacts)   $27.50






2.500" (64mm) c-c mounting holes
2.05" (52mm) c-c arm span
T302 (2 sets of contacts)   $32.50



Inforex Dustite
1.875" c-c mounting holes

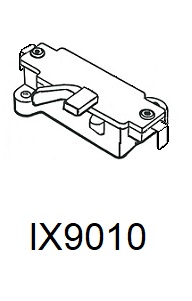

IX9010 (1 sets of contacts)   $40.50



2.125" c-c mounting holes

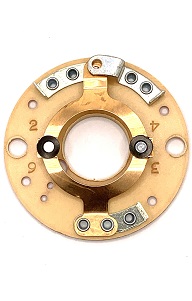

T60F (0.312" diam. contacts)   $30.25
Higher capacity contacts than OEM below,
but must be rotated 26o to mount.




1.937" & 0.937" c-c mounting holes

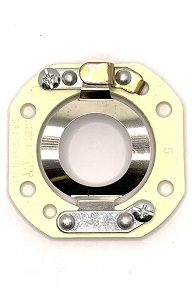

T60Foem (0.187" diam. contacts)   $35.50


2.72" c-c mounting holes
T80F (1 set of contacts)   $50.00
Currently unavailable



1.937" & 0.937" c-c mounting holes

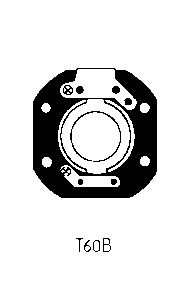

T60B (1 set of contacts)   $37.50

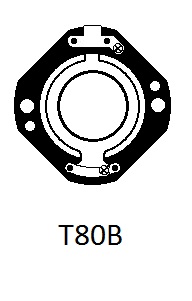

T80B Drawing
2.81" c-c mounting holes
T80B (1 set of contacts)   $62.50



T19 Drawing
50mm c-c mounting holes
32mm c-c span

T19 (1 set of contacts)   $25.00

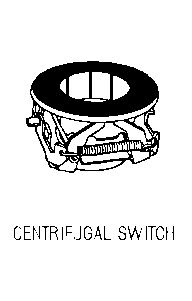

14mm bore x 32.5mm spool o.d.
with collar and set screws

T60R14-18 (1800rpm)  $19.75
T60R14-36 (3600rpm)  $19.75


16mm bore x 33mm spool o.d.
with collar and set screws

T60R16-36S (3600rpm)  $31.50


16mm bore x 46mm spool o.d.
with collar and set screws

T60R16-18 (1800rpm)  $44.50
T60R16-36 (3600rpm)  $31.50


16mm bore x 70mm spool o.d.
with collar and set screws

T60R16-18A (1800rpm)  $34.50


17mm bore x 48mm spool o.d.
press-on to shaft

T70R-18 (1800rpm)  $34.50
T70R-36 (3600rpm)  $34.50


17mm bore x 54mm spool o.d.
press-on to shaft

T80R17-18 (1800rpm)  $34.50
T80R17-36 (3600rpm)  $34.50


19mm bore x 34mm spool o.d.
with collar and set screws

T60R19-18S (1800rpm)   $33.50
T60R19-36S (3600rpm)   $31.50


19mm bore x 46mm spool o.d.
with collar and set screws

T60R19-18 (1800rpm)   $33.50
T60R19-36 (3600rpm)   $31.50


19mm bore x 54mm spool o.d.
press-on to shaft

T80R19-18 (1800rpm)  $34.50


19mm bore x 58mm spool o.d.
with collar and set screws

T80R19-36 (3600rpm)  $34.50


19.66mm bore x 50mm spool o.d.
with through pin and split plate

T19R19-36 (3600rpm)  $25.00
20mm bore x 62mm spool o.d.
press-on to shaft

T80R20-18 (1800rpm)  $31.50
T80R20-36 (3600rpm)  $31.50


22mm bore x 46mm spool o.d.
with collar and set screws

T60R22-18 (1800rpm)   $46.75
T60R22-36 (3600rpm)   $43.75


22mm bore x 56mm spool o.d.
with collar and set screws

T80R22-36 (3600rpm)   $47.50


22mm bore x 62mm spool o.d.
press-on to shaft

T80R22Y-36 (3600rpm)   $31.50


23mm bore x 52mm spool o.d.
with collar and set screws

T80R23-18 (1800rpm)   $37.50


25mm bore x 70mm spool o.d.
press-on to shaft

T90R25-18 (1800rpm)  $31.50
T90R25-36 (3600rpm)  $31.50


27mm bore x 70mm spool o.d.
press-on to shaft

T90R27-18 (1800rpm)  $31.50


32mm bore x 56mm spool o.d.
with collar and set screws

T80R32-18 (1800rpm)   $37.50
T80R32-36 (3600rpm)   $37.50


34mm bore x 86mm spool o.d.
press-on to shaft

T100R34-18 (1800rpm)   $34.50
T100R34-36 (3600rpm)   $34.50
