Flat Wound Springs for Brush Holders
back to brush holder main page

Flat Wound
                1 Slot Drawing     Flat Wound 1 Tab Spring Drawing     Spring Mounting Drawing

Part
Price
Thickness
Length
Notes
FWS1S080x312 $3.00
0.080"
0.312"
flat wound 1slot
FWS1S080x525 $3.00
0.080"
0.525"
flat wound 1slot
FWS1S2.5x14.5 $3.50
0.098"
2.5mm
0.571"
14.5mm
flat wound 1slot
FWS1S116x581 $7.75
0.116"
0.581"
flat wound 1slot
FWS1S116x835 $5.00
0.116"
0.835"
flat wound 1slot
FWS1S118x531 $3.00
0.118"
0.531"
flat wound 1slot
FWS1S125x465 $4.85
0.125"
0.465"
flat wound 1slot
FWS1S125x529 $3.00
0.125"
0.529"
flat wound 1slot
FWS1S142x437 $3.50
0.142"
0.437"
flat wound 1slot
Kawasaki
FWS1S187x812 $3.00
0.187"
0.812"
flat wound 1slot
#4001Spring
$5.85
0.187"
1.375"
flat wound 1slot, Prestolite, black
FWS1S194x698 $3.00
0.194"
0.698"
flat wound 1slot
FWS1S5x12.5
$7.25
0.197"
5mm
0.492"
12.5mm
flat wound 1slot, Kawasaki
FWS1S199x953
$3.50
0.199"
0.953"
flat wound 1slot
BA210D $10.00
0.250"
1.144"
flat wound 1slot, Baldor, red
#36B467022-1
36B467022AB001
consider GCS101 below
$47.50
0.250"
1.192"
flat wound 1slot, GE, silver
BA210 $10.00
0.250"
1.281"
flat wound 1slot, Baldor, orange
BA210W $10.00
0.250"
1.281"
flat wound 1slot, Baldor, white
GCS101 $8.50
0.250"
1.250"
flat wound 1tab, GE, silver
FWS1S312x690 $6.75
0.312"
0.690"
flat wound 1slot, Delco, black
FWS1T318x825 $6.75
0.318"
narrows to 0.193"
0.825"
flat wound 1tab, starter

Flat Wound Springs for Brush Holders
back to brush holder main page

Flat Wound
                2 Slot Spring Drawing     Figure Flat Wound 2 Tab Spring Drawing     Spring Mounting Drawing

Part
Price
Thickness
Length
Notes
FWS2S125x592 $3.50
0.125"
0.592"
flat wound 2slot, gold
FWS2S125x675 $9.90
0.125"
0.675"
flat wound 2slot
B240503 $5.50
0.187"
0.750"
flat wound 2 tab, Ohio, silver
B240501 $4.15
0.250"
0.832"
flat wound 2 tab, Ohio, blue
FWS2T313x937 $4.50
0.313"
0.937"
flat wound 2 tab, Intrupa

Flat Wound Springs for Brush Holders
back to brush holder main page

Flat Wound
                3Slot Spring Drawing     Flat Wound
                3Tab Spring Drawing     Spring
                Mounting Drawing

Part
Price
Thickness
Length
Notes
BA210C $10.00
0.312"
1.750"
flat wound 3slot, Baldor

Flat Wound Springs for Brush Holders
back to brush holder main page

Flat Wound
                4Slot Spring Drawing     Flat Wound
                4Tab Spring Drawing     Spring
                Mounting Drawing

Part
Price
Thickness
Length
Notes
BA210A $10.00
0.187"
1.457"
flat wound 4slot, Baldor
BA210B $10.00
0.250"
1.610"
flat wound 4slot, Baldor
BP2000A01 $10.00
0.250"
1.750"
~flat wound 4slot, Baldor

Flat Wound Springs for Brush Holders
back to brush holder main page
Figure
                4001Spring Drawing
Part
Price
Thickness
Length
Notes
#4001Spring
$5.85
0.187"
1.375"
#4001, for Prestolite model MTC4001 and others

Flat Wound Springs for Brush Holders
back to brush holder main page
Paramount
                spring drawing
Part
Price
Thickness
Length
Notes
PRMT0009
$1.95
0.187"
1.375"
Paramount, goes with 534200018 brush

  Constant Pressure Replacement Springs for Brush Holder Assemblies
back to brush holder main page

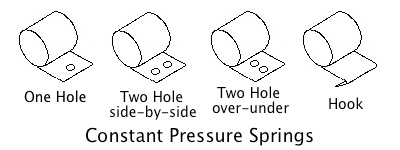

Constant Pressure Replacement Springs Drawing
Part
Price
Thickness
Diameter
Style, Spring Tension and Notes
CPS-187-0.37
$5.95
0.187"
0.30"
One Hole, 0.37#
CPS-187-0.49
$6.05
0.187"
0.40"
One Hole, 0.49#
CPS-250-0.23
$6.05
0.250"
0.62"
One Hole, 0.23#
CPS-250-0.66
$6.05
0.250"
0.40"
One Hole, 0.66#
CPS-A20723
$5.00
0.262"
0.423"
Hook, 1.3#
CPS-312-0.36
$6.15
0.312"
0.78"
One Hole, 0.36#
CPS-312-0.83
$6.15
0.312"
0.40"
One Hole, 0.83#
CPS-312-1.03
$5.95
0.312"
0.50"
One Hole, 1.03#
CPS-375-0.43
$6.35
0.375"
0.78"
One Hole, 0.43#

  Constant Pressure Replacement Springs for Brush Holder Assemblies
back to brush holder main page
Constant Pressure Replacement Springs Drawing
Part
Price
Thickness
Diameter
Style, Spring Tension and Notes
CPS-375-0.52
$6.35
0.375"
0.90"
One Hole, 0.52#
CPS-375-1.48
$6.35
0.375"
0.62"
One Hole, 1.48#
CPS-500-0.70
$6.45
0.500"
0.92"
One Hole, 0.70#
CPS-500-0.93
$6.55
0.500"
1.23"
One Hole, 0.93#
CPS-500-1.97
$6.45
0.500"
0.65"
One Hole, 1.97#
CPS-500-2.63
$6.65
0.500"
0.82"
One Hole, 2.63#
CPS-625-1.46
$7.55
0.625"
1.53"
One Hole, 1.46#
CPS-625-3.29
$7.75
0.625"
0.83"
One Hole, 3.29#
CPS-625-4.12
$8.15
0.625"
0.99"
One Hole, 4.12#

  Constant Pressure Replacement Springs for Brush Holder Assemblies
back to brush holder main page
Constant Pressure Replacement Springs Drawing
Part
Price
Thickness
Diameter
Style, Spring Tension and Notes
CPS-750-2.09
$8.35
0.750"
1.82"
One Hole, 2.09#
CPS-750-4.00
$8.25
0.750"
0.82"
One Hole, 4.00#
CPS-750-4.95
$8.45
0.750"
0.97"
One Hole, 4.95#
CPS-750-5.94
$8.85
0.750"
1.19"
One Hole, 5.94#
CPS-1000-2.80
$14.45
1.000"
1.84"
One Hole, 2.80#
CPS-1000-3.50
$14.75
1.000"
2.20"
One Hole, 3.50#
CPS-1000-4.10
$14.75
1.000""
2.21"
One Hole, 4.10#
CPS-1000-7.92
$10.65
1.000"
1.20"
One Hole, 7.92#
CPS-1000-10.60
$13.65
1.000"
1.52"
One Hole, 10.60#

  Constant Pressure Replacement Springs for Brush Holder Assemblies
back to brush holder main page
Constant Pressure Replacement Springs Drawing
Part
Price
Thickness
Diameter
Style, Spring Tension and Notes
CPS-1250-4.37
$14.75
1.250"
2.29"
One Hole, 4.37#
CPS-1250-5.83
$25.75
1.250"
2.82"
One Hole, 5.83#
CPS-1250-16.50
$17.75
1.250"
1.89"
One Hole, 16.50#
CPS-1500-8.4
$28.55
1.500"
3.70"
Two Hole, 8.4#
CPS-1500-24.80
$25.35
1.500"
2.23"
Two Hole, 24.80#
CPS-2000-11.70
$35.65
2.000"
3.68"
Two Hole, 11.70#
CPS-2000-14.40
$49.75
2.000"
4.74"
Two Hole, 14.40#
CPS-2000-33.00
$32.45
2.000"
2.22"
Two Hole, 33.00#
CPS-2000-40.90
$39.05
2.000"
3.03"
Two Hole, 40.90#

Dumbell Type Springs for Brush Holders
back to brush holder main page
Part Price
Thickness
Width
Application/Notes
PMT28000 $3.50
0.250"
0.703"
dumbell, Paramount, for brush thickness 0.250"
#900007-01 $2.56
0.250"
0.925"
dumbell, Leeson, for brush thickness 0.375"
NEG0149
$2.80
0.250"
0.956"
dumbell, Scott, for brush thickness 0.406"
#900007-02 $2.95
0.375"
0.950"
dumbell, Leeson, for brush thickness 0.375"
