Leeson Switches
H.S. Number: 8503.00.500
AO Smith    Baldor    Bell & Gosett    Bodine    Centrifugal Mechanisms    Century    Doerr    Electra
Emerson    Flint & Walling    Fan & Limit   Franklin    General Electric    Hobart/Jack & Heinz    Leeson    Leland
Magnetek    Marathon    Master    Reliance    Tatung    Toshiba    US    Wagner    Weg    Westinghouse

2.750" mounting 1.687" id 2.000" span
LN1A  (2 sets of open contacts) $17.95
002755.01


2.750" mounting 1.687" id 2.000" span

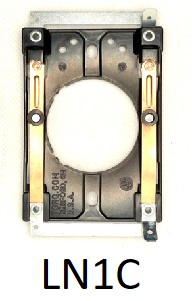

LN1C  (2 sets of open contacts) $27.85
002767.01



2.750" mounting 1.687" id 2.000" span
LN002754.01  (2 sets of open contacts) $16.50
002754.01



2.750" mounting 1.687" id 2.000" span
LN002798.01  (2 sets of open contacts) $23.50
002798.01



LN503 Drawing
LN503   $32.00
002796.01




4 sets of contacts
1.68" hole diameter
2.000" arm span

SP5033 $48.70
002801.01
2.625-2.750" c-c mounting holes
2.750" mounting 1.687" id 2.000" span

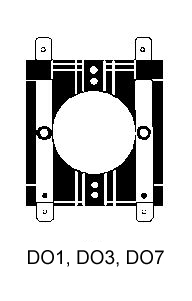

DO1A (0 contacts, LN2NC)   $23.50
002763.01

2.750" mounting 1.687" id 2.000" span

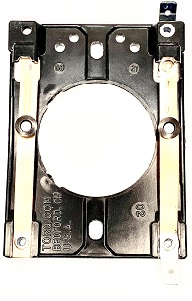

LN1 (1 set of open contacts)   $16.50
002750.01
2.750" mounting 1.687" id 2.000" span

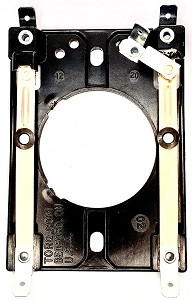

DO1B (2 open/1 closed sets of contacts, LN1B)   $39.00
002765.01 for 2 speed motors

2.750" mounting 1.937" id 2.625" span

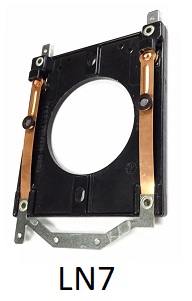

LN7 (2 sets of open contacts)   $28.90
002758.02




3.375" mounting 2.250" id 2.625" span

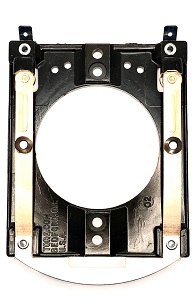

DO3A (2 sets of open contacts, LN3A)   $36.15
002762.01, 002762.02


MR3D   $46.15
002808.01

CV16-165   (002785.01, 472101611U03)
Obsolete. Use CV40-165 below.

CV25-165   (002791.04, 472102511U03)
Obsolete. Use CV40-165 below.

CV40-165   (002785.03, 472104011U03)   $117.50


IR25-165   (002789.01, 475102515U03)   $169.50

IR40-165   (002789.02, 475104015U03)   $169.50
0.737" id 2.250" spool od

LN56-18 (1800rpm)   $23.50
red finish springs
LN56-18(50Hz) (1800rpm, 50Hz)   $23.50
steel finish springs
LN56-36 (3600rpm)   $23.50
steel finish springs
LN56-36(50Hz) (3600rpm, 50Hz)   $23.50
steel finish springs
LN56spool Plastic spool only $12.50



0.737" id 2.250" spool od

MS203-12 (1200rpm)   $23.00
002500.03
MS203-18 (1800rpm)   $22.00
002500.02
MS203-36 (3600rpm)   $25.20
002500.01
MS203-36(50Hz) (3600rpm)   $27.50
002500.05, 2500-05
LN250014-2 (2-speed)   $20.00
002500.14
LN002500.16 (50 Hz, 2-speed)   $23.50
002500.16

0.869" id 2.250" tall spool od
for instant reversing motors

DO11-12A (1200rpm)   $54.55
002512.03
002512.04
DO11-18A (1800rpm)   $43.10
002512.02


1.127" id 3.000" spool od

LN6P60TC (1200rpm)   $28.95
002520.03
LN4P60TC (1800rpm)   $28.95
002520.02
LN2P60TC (3600rpm)   $32.50
002520.01

Special for 50Hz
LN4P50TC (1800rpm)   $36.50
002520.06
Special for 50Hz
LN2P50TC (3600rpm)   $36.50
002520.05

1.325" id 2.875" spool od

LN213-18 (1800rpm)   $47.50

1.325" id 3.562" spool od

LN213-18B (1800rpm)   $47.50
LN213-36B (3600rpm)   $45.50

1 set 0.250" diameter contacts
Mounting: 2.375" c-c
Top: Five QM-0.250" terminals
MR5   $44.50
