Bearings and Accessories

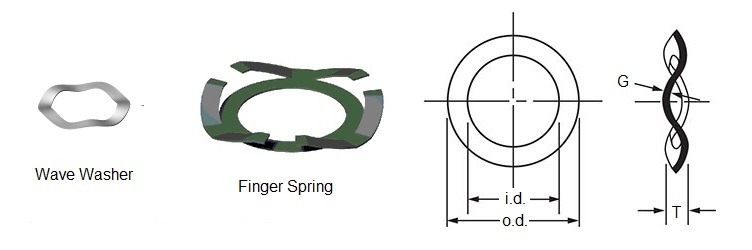

Washers Drawing

Part Price
o.d. i.d. T - Thickness G - Guage Notes
BBW1 $1.50
0.600" 0.312" 0.125" 0.010" Finger Spring
BBW2 $1.75
0.728" 0.344" 0.125" 0.006" Finger Spring
BBW3 $2.00
0.846" 0.453" 0.125" 0.006" Finger Spring
BBW4 $2.25
0.923" 0.450" 0.125" 0.010" Finger Spring
BBW5 $2.50
0.977" 0.512" 0.125" 0.010" Finger Spring
BBW6 $2.75
1.156" 0.687" 0.125" 0.013" Finger Spring
BBW7 $3.00
1.225" 0.687" 0.125" 0.008" Finger Spring
BBW8 $3.25
1.360" 0.812" 0.125" 0.011" Finger Spring
BBW9 $3.50
1.555" 0.971" 0.125" 0.011" Finger Spring
BBW10 $3.75
1.555" 1.000" 0.125" 0.018" Finger Spring
BBW11 $4.00
1.829" 1.187" 0.125" 0.015" Finger Spring
BBW12 $4.25
2.012" 1.356" 0.125" 0.019" Finger Spring
WW0.500 $1.35
0.500"
12.7mm
0.350" 0.025" 0.010" Wave washer
WW22mm $1.50
22mm 16.5mm 1mm 0.25mm Wave washer for 608
WW32mm $1.75
32mm 24.8mm 2mm 0.30mm Wave washer for 6201
WW40mm $2.50
40mm 31mm 2.3mm 0.5mm Wave washer for 6203
WW47mm $3.75
47mm 35mm 4mm 0.4mm Wave washer for 6204
WW52mm $3.75
52mm 40mm 5mm 0.5mm Wave washer for 6205, 6304
WW55mm $3.75
55mm 42mm 3mm 0.5mm Wave washer
WW62mm $4.25
62mm 47mm 3.2mm 0.55mm Wave washer for 6206, 6305
WW72mm $4.25
72mm 55mm 4.2mm 0.65mm Wave washer for 6306
WW80mm $4.25
80mm 60mm 6.3mm 0.8mm Wave washer for 6307
WW90mm $8.50
90mm 69mm 6.3mm 0.85mm Wave washer for 6308
WW100mm $4.25
100mm 88mm 4.5mm 0.7mm Wave washer for 6211, 6309
WW110mm $7.50
110mm 85mm 7.5mm 1.1mm Wave washer for 6212, 6310
WW120mm $13.50
120mm 90mm 10mm 1.1mm Wave washer for 6213
WW130mm $14.50
130mm 98mm 11mm 1.15mm Wave washer for 6312
WW140mm $19.00
140mm 105mm 11mm 1.25mm Wave washer for 6313
WW150mm $23.50
150mm 114mm 9.5mm 1.30mm Wave washer for 6314
WW160mm $23.50
160mm 120mm 12.5mm 1.4mm Wave washer for 6218
WW170mm $31.50
170mm 135mm 13.5mm 1.45mm Wave washer for 6219

Bearing Drawing

Part Price
i.d. o.d. Height Material Notes
Bz0.250x0.312x0.750 $4.50
0.250" 0.312" 0.750" Sintered Bronze Self-lubricating
Bz0.250x0.375x0.500 $4.50
0.250" 0.375" 0.500" Sintered Bronze Self-lubricating
Bz0.250x0.375x1.000 $7.00
0.250" 0.375" 1.000" Sintered Bronze Self-lubricating
Bz0.375x0.500x0.500 $5.00
0.375" 0.500" 0.500" Sintered Bronze Self-lubricating
Bz0.375x0.500x1.000 $4.50
0.375" 0.500" 1.000" Sintered Bronze Self-lubricating
Bz0.500x0.625x0.625 $5.50
0.500" 0.625" 0.625" Sintered Bronze Self-lubricating
Bz0.500x0.625x1.125 $6.00
0.500" 0.625" 1.125" Sintered Bronze Self-lubricating
Bz0.500x0.688x1.125 $7.00
0.500" 0.688" 1.125" Sintered Bronze Self-lubricating
Bz0.500x0.750x1.125 $10.00
0.500" 0.750" 1.125" Sintered Bronze Self-lubricating
Bz0.625x0.750x1.000 $5.00
0.625" 0.750" 1.000" Sintered Bronze Self-lubricating
Bz0.625x0.750x1.125 $6.00
0.625" 0.750" 1.125" Sintered Bronze Self-lubricating
Bz0.750x1.000x1.875 $17.50
0.750" 1.000" 1.875" Sintered Bronze Self-lubricating
